Kong Anchor Connector Fixed Stainless Steel
From
£36.99
Unit price
/
Unavailable
Kong Anchor Connector Fixed Stainless Steel

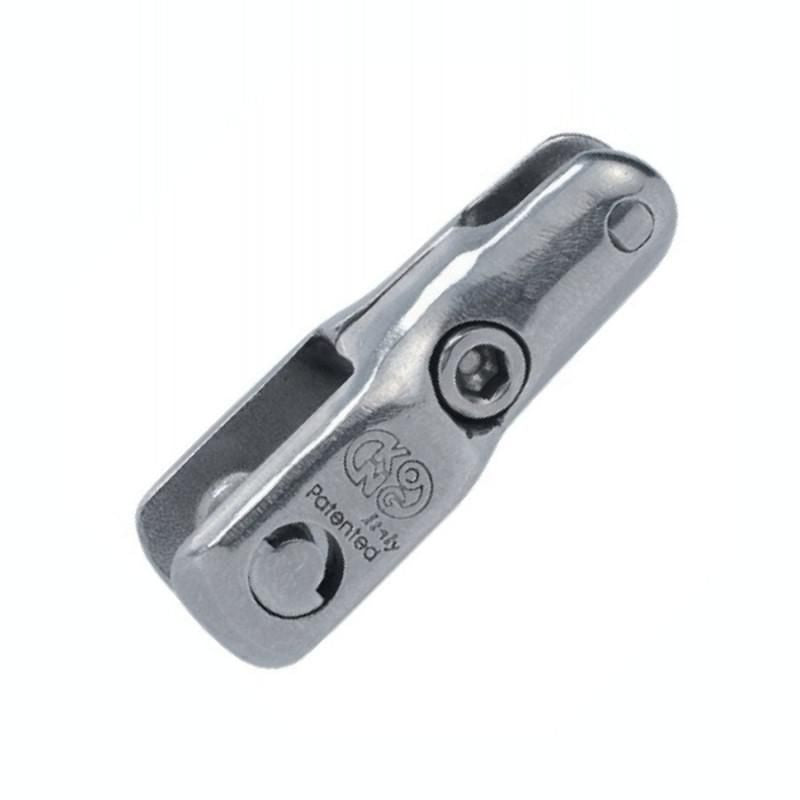

This anchor connector is made from durable polished 316 stainless steel with a slim design that won't snag on bow rollers or hawsepipes. The fixed, non-swivelling construction keeps your anchor secure, though adding extra articulation points can improve flexibility if needed.
Specifications
| Part Number | Kong Chain Size | Manufacturer Straight Break Load | Manufacturer Lateral Break Load | Compatibility |
| KG AC08-T | 6-8mm | 2500kg | 850kg | 6mm, 7mm |
| KG AC10-T | 8-12mm | 5000kg | 2000kg | 8mm, 10mm |
| KG AC12-T | 12-14mm | 9500kg | 3000kg | 12/13/14mm |

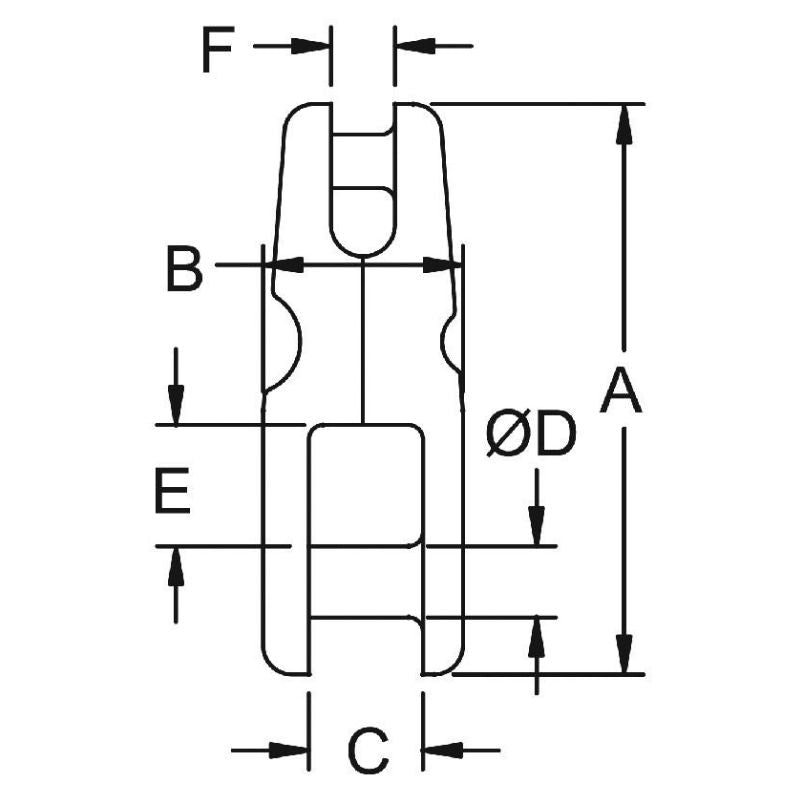

Dimensions
| Part Number | Chain Size | A | B | C | D | E | F |
| KG AC08-T | 6mm/8mm | 80mm | 28mm | 16mm | 10mm | 19mm | 9mm |
| KG AC10-T | 8mm/12mm | 100m | 37mm | 22mm | 13mm | 23.5mm | 13mm |
| KG AC12-T | 12mm/14mm | 125mm | 55mm | 33m | 18mm | 28mm | 17mm |
