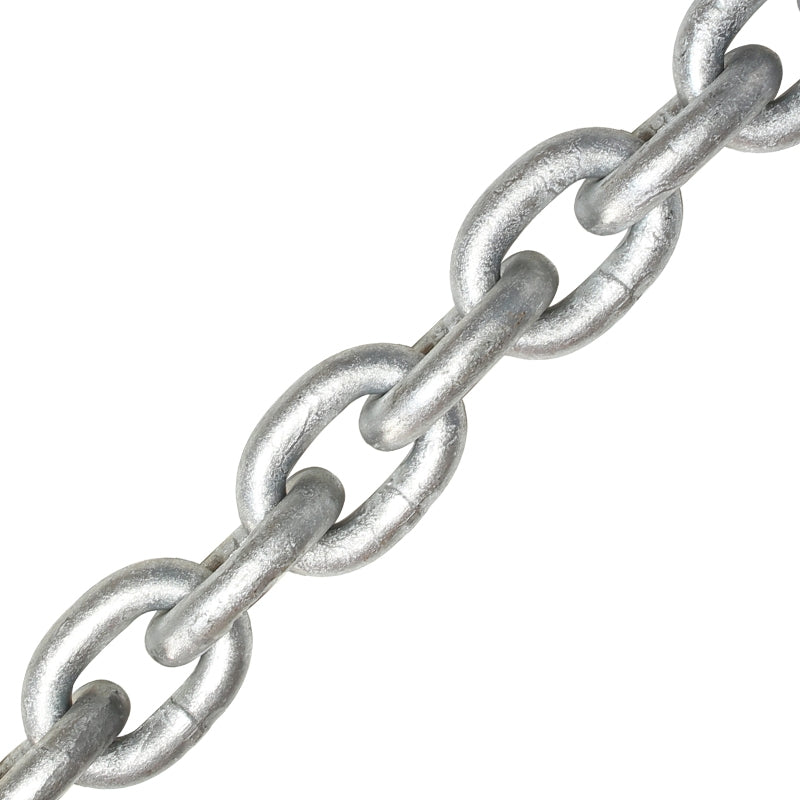

Chain 10mm / 3/8" ISO (30mm ID) Grade 40

8mm AQUA4 DIN766 is generally suitable for yachts up to approximately 12 metres, length overall. Calibrated Anchor Chain, Galvanized finish to ISO1461. Manufactured to DIN766 and ISO4565 and suitable for all major types of winches and windlasses. Also available in AISI316 Stainless Steel. Enlarged Links can be fitted to facilitate anchor shackle. Batch tested and supplied with Certificate of Conformity.

Specification

• Grade: 40
• Chain Size: 10 mm
• Pitch: 28 mm
• Max. outer width: 36 mm
• ISO 4565: Yes
• DIN 766: No
• Weight per M: 2.25 kg
• Proof Force: 32 kN
• Minimum breaking force: 63kN
