SKU: SAMO2741

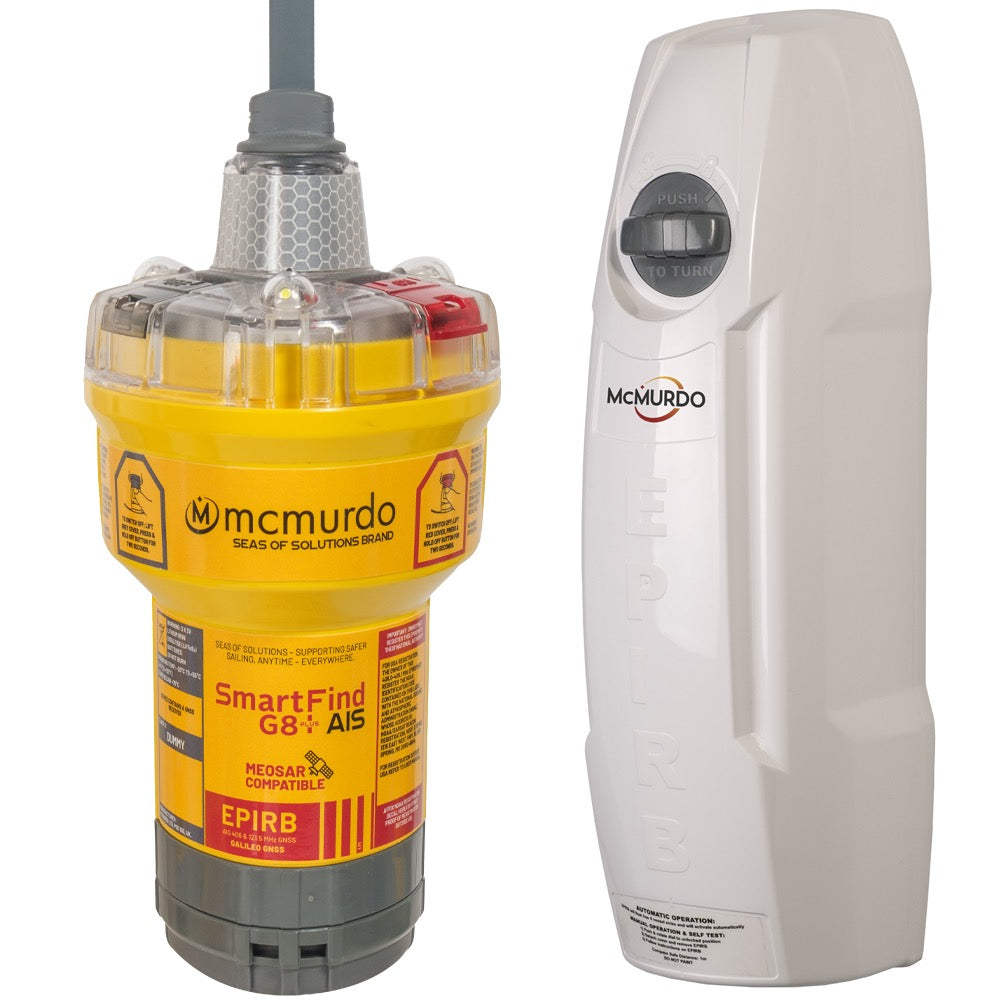

McMurdo SmartFind G8 Plus AIS EPIRB Automatic Cat 1

£649.95
Tax included Shipping calculated at checkout.

McMurdo SmartFind G8 Plus AIS EPIRB Cat 1 – Automatic Release Housing

Combining the global 406 MHz professional search and rescue alert, with the localised locating and tracking power of AIS. The SmartFind G8 PLUS AIS EPIRB is MEOSAR Compatible® for enhanced detection and location performance and now with Infra-Red (Night-Vision) optical signal to aid detection of survivors in low light conditions. Infrared can be detected at greater range and in poorer conditions than standard EPIRB lights, therefore further accelerating recovery times.

Features

  • Built in AIS for localized rescue
  • Multi GNSS including Galileo & GPS
  • Meets IMO requirement; MSC.471 (101)
  • Infrared (Night-Vision) optical signal
  • Accidental activation protection
  • Rugged construction optimised for commercial environments
  • Hands free carry strap
  • 360-degree strobe
  • Comes with safety bracket
  • 10-year battery life
  • Sealed Electronic Unit
  • Sealed Battery Unit

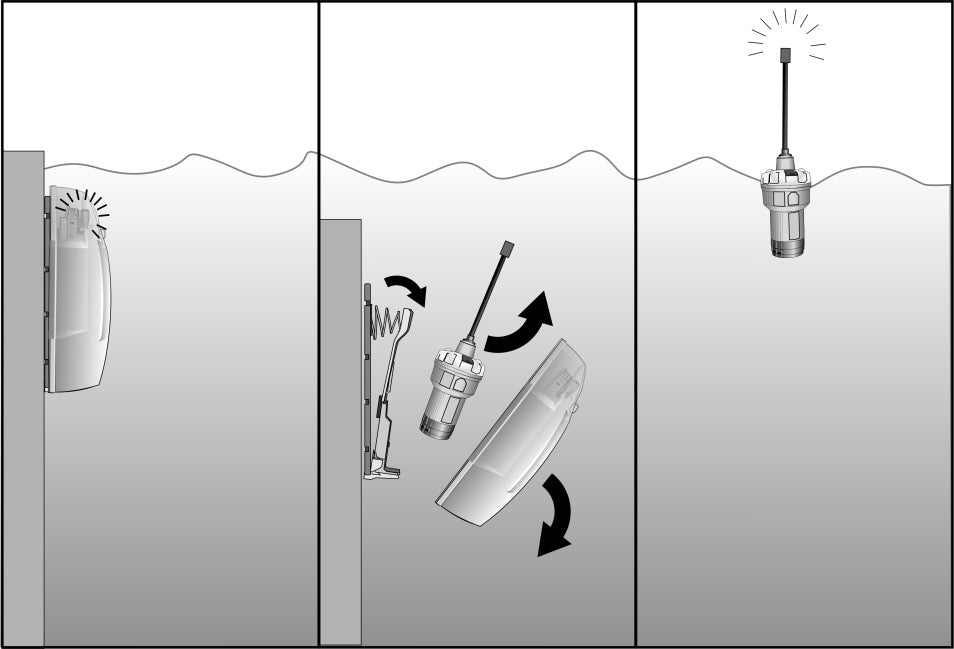

  • Includes auto release housing

Also available as Mcmurdo G8 Manual Bracket Model

  • 406 MHZ TRANSMITTER
    Frequency 406.040 MHz, Power output 5 W nominal, Modulation BSPK (16KOG1D)
  • 121.5 MHZ TRANSMITTER
    Frequency 121.5 MHz, Power output 70 mW nominal, Modulation AM Swept tone (3K20A3X)
  • AIS TRANSMITTER
    Frequencies 161.975 MHz (AIS1); 162.025 MHz (AIS2), Power output 1 W EIRP, Modulation GMSK/FM (16K0GXW)
  • GNSS RECEIVER
    Constellations GPS, Galileo, Frequencies 1575.42 MHz (GPS, Galileo), Sensitivity -167 dBm minimum, Satellites tracked 92 channels
  • OPTICAL HOMER
    Day and night vision strobe 3 points of high intensity LEDs, Light output 0.75 cd / 2.5 mW/sr minimum, Flash rate 23 flashes per minute
  • BATTERY
    Type Lithium iron disulphide, Operating life 48 hours minimum, Shelf life 10 years from date of manufacture (see Note 1)
  • ENVIRONMENT
    Operating temperature -20 °C to +55 °C (-4 °F to +131 °F), Storage temperature -30 °C to +70 °C (-22 °F to +158 °F)
  • DIMENSIONS (EPIRB)
    Weight 710 g, Height/Width/Depth 425 X 105 X 105 mm (incl. antenna), Length of antenna 225 mm
  • DIMENSIONS (FLOAT FREE ENCLOSURE)
    Weight 1075 g, Height/Width/Depth 415 x 135 x 135 mm

NOTE 1: As a responsible manufacturer, McMurdo recommends a 5-year health check at the nearest McMurdo approved service agent. Shore based maintenance mandated vessels, battery health check or replacements should be carried out in accordance with flag Administration requirements and not exceeding 5 years.
