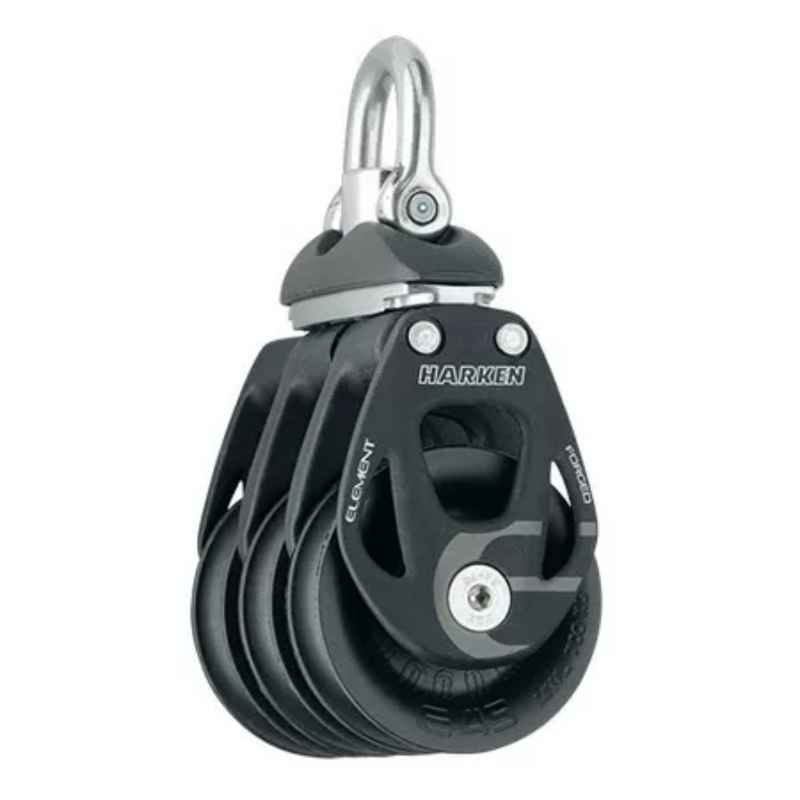

Harken Element Triple Swivel Block
Harken Element Triple Swivel Block - 45mm - 6240 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Harken Element Triple Swivel Block
Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Specifications
Harken Reference | 6240 |
Sheave Ø (mm) | 45 mm |
Sheave Ø (in) | 1 3/4 in |
Length (mm) | 108 mm |
Length (in) | 4 1/4 in |
Weight (g) | 265 g |
Weight (oz) | 9.3 oz |
Shackle pin Ø (mm) | 6 mm |
Shackle pin Ø (in) | 1/4 in |
Maximum line Ø (mm) | 12 mm |
Maximum line Ø (in) | 1/2 in |
Maximum working load (kg) | 1050 kg |
Maximum working load (lb) | 2315 lb |
