Harken Carbo Ratchamatic Block
£136.75
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Harken Carbo Ratchamatic Block is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Harken Carbo Ratchamatic Block
£136.75
Unit price
/
Unavailable

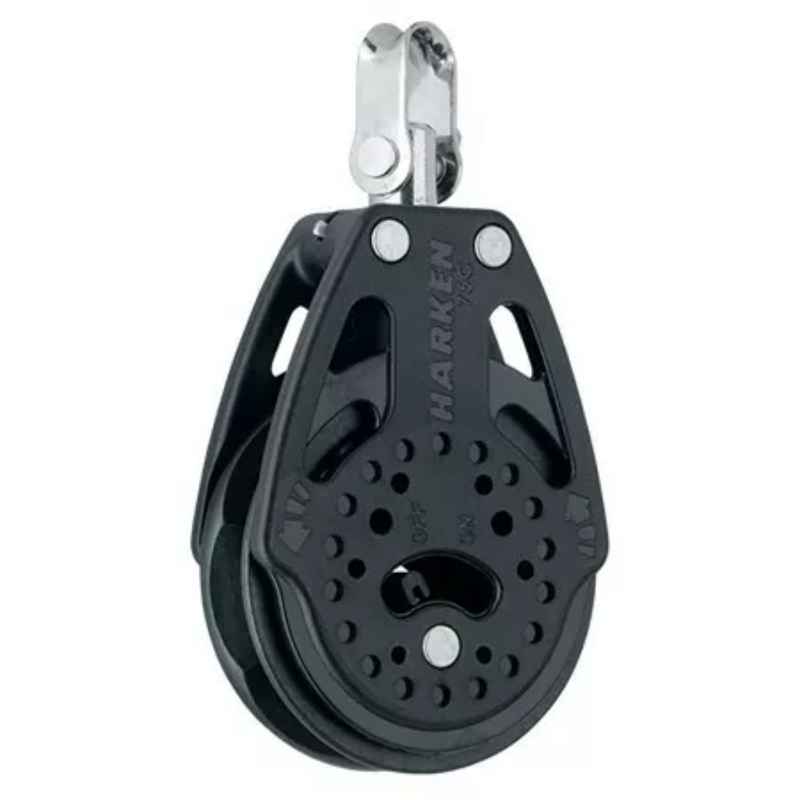

Harken Carbo Ratchamatic Block
The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. Standard grip: medium/light air; 10:1 holding power.
Specifications
| Harken Reference | 2625 |
| Sheave Ø (mm) | 57 mm |
| Sheave Ø (in) | 2 1/4 in |
| Length (mm) | 103 mm |
| Length (in) | 4 1/16 in |
| Weight (g) | 104 g |
| Weight (oz) | 3.7 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Maximum working load (kg) | 227 kg |
| Maximum working load (lb) | 500 lb |
| Breaking load (lb) | 2000 lb |
| Breaking load (kg) | 907 kg |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
| Holding power | 10:1 |
