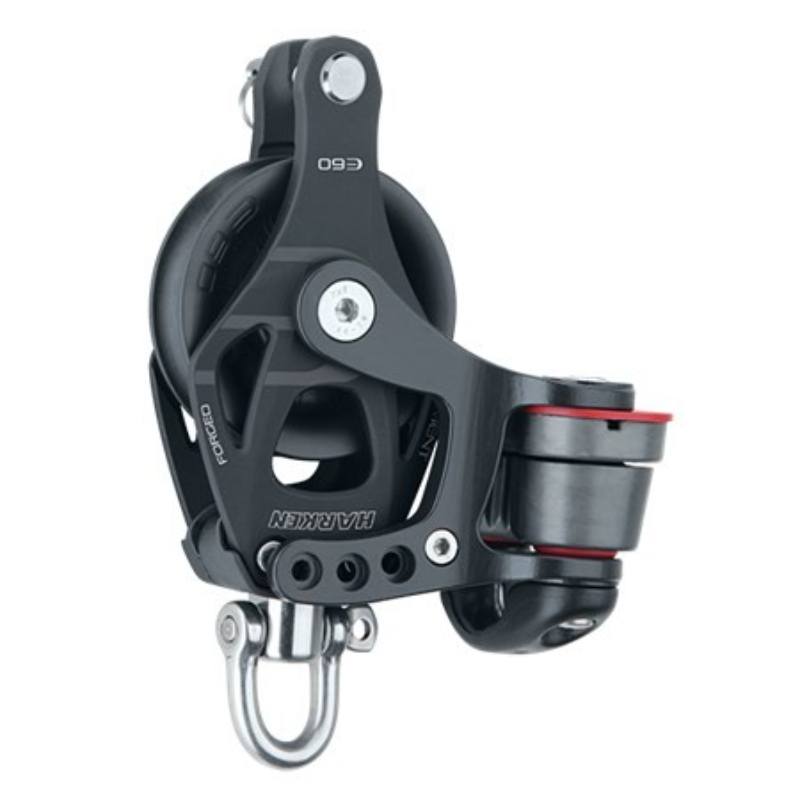

Harken Element Single Swivel With 150 Cam & Becket

Element blocks introduce side plates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specifications

Sheave (mm) - 45 mm
Length (mm) - 121 mm
Weight (g) - 230 g
Shackle pin (mm) - 6 mm
Maximum line (mm) - 12 mm
Maximum working load (kg) - 272 kg
Breaking load (kg) - 544 kg
