Anchor Chain Din 766 Grade 40 - 6mm - 10mm
Anchor Chain Din 766 Grade 40 - 6mm - 10mm - 6mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Anchor Chain Din 766 Grade 40 - 6mm - 10mm

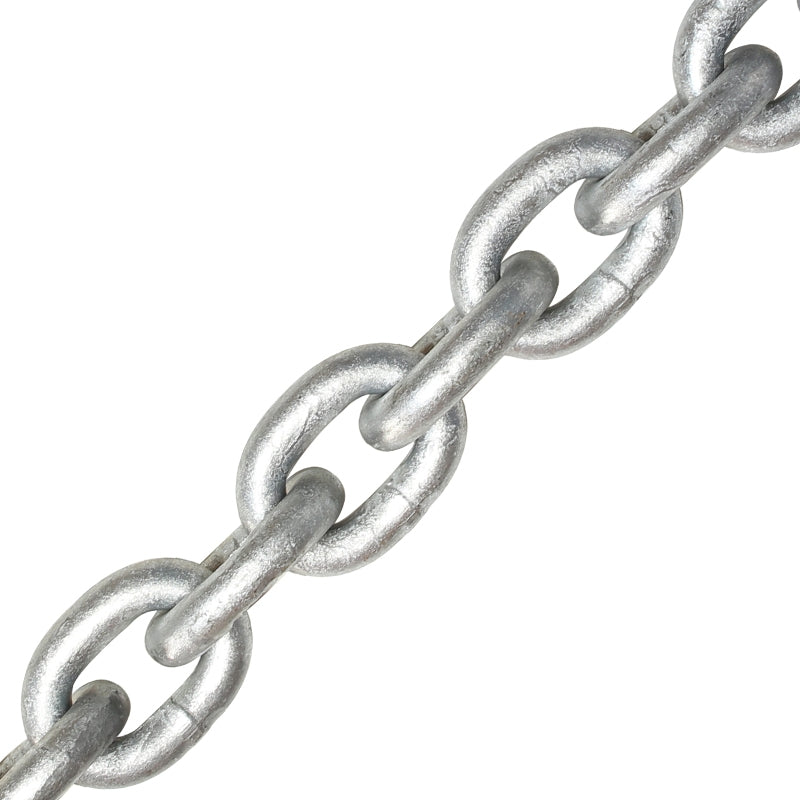

Chain 6mm / 1/4" Din766 Grade 40
6mm Aqua 4 DIN766 is generally suitable for open boats and small yachts up to approximately 6 metres in overall length. Every link is tested to the proof load during the manufacturing process ensuring that each weld has been completed successfully.
Specifications
- Grade 40
- Chain Size: 6 mm
- Pitch: 18.5 mm
- Max. outer width: 21.6 mm
- ISO 4565 Compliant
- DIN 766 Compliant
- Weight per M: 0.80 kg
- Proof Force:10 kN
- Minimum breaking force:18 kN
Factor in
- Displacement : Length ratio
- Your cruising intentions
- The anticipated anchorage conditions e.g. depth, seabed holding characteristics, the length of fetch and degree of exposure to prevailing winds
- The length of chain that will be deployed and any extra scope provided by an anchor warp
- The weight and design of anchor
Frequently Asked Questions
What is this chain made of?
This chain is manufactured from high quality mild steel / high tensile carbon steel with a hot dip galvanized finish.
What certifications/standardizations does this chain comply to?
This chain complies to ISO 4565 (International Organisation for Standardisation), EN 24565, BS 7160 and DIN 766 (German Institute for Standardization).
What is this chain designed for?
This chain is designed for anchor windlasses on small vessels, up to approximately 6 metres in overall length.
Has this chain been tested?
Every link in the chain has been subject to a load and batch test to ensure that they can withstand the minimum breaking load. They are also inspected to ensure they meet the requirements.
