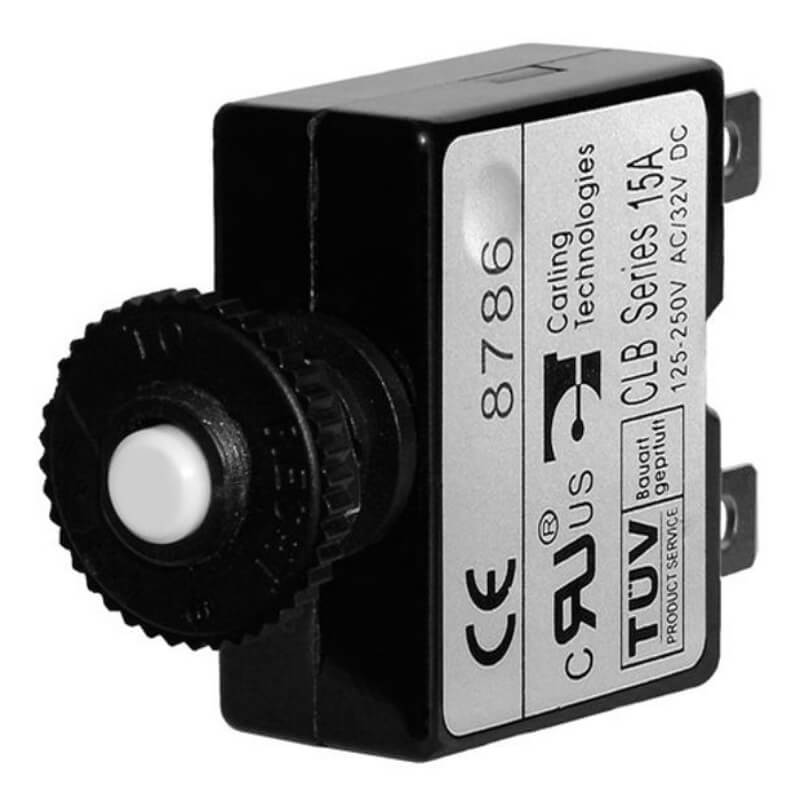

Blue Sea Push Button Circuit Breaker

The Blue Sea Push Button Circuit Breaker is designed to help protect your electrical from damage caused by an overload or short circuit, if the button pops out then the circuit has shorted. This circuit breaker automatically interrupts the current of an overloaded electric circuit, and to visually display it, the button pops out for you to reset it.

Specifications

• Trip free
• Push-to-reset operation
• UL 1500 & ISO 8846 ignition protection
• Interrupting capacity (at 14.7V DC): 3000A
• Interrupting capacity (at 28V DC): 2500A
• Maximum voltage: 32V DC
• Operating temperature range: -10℃ to 60℃ (14℉ to 140℉)
• Terminals: 1/4" quick connect
• Mounting 3/8" -27 UNS
• Weight: 0.03kg
• Not recommended for marine AC circuits
