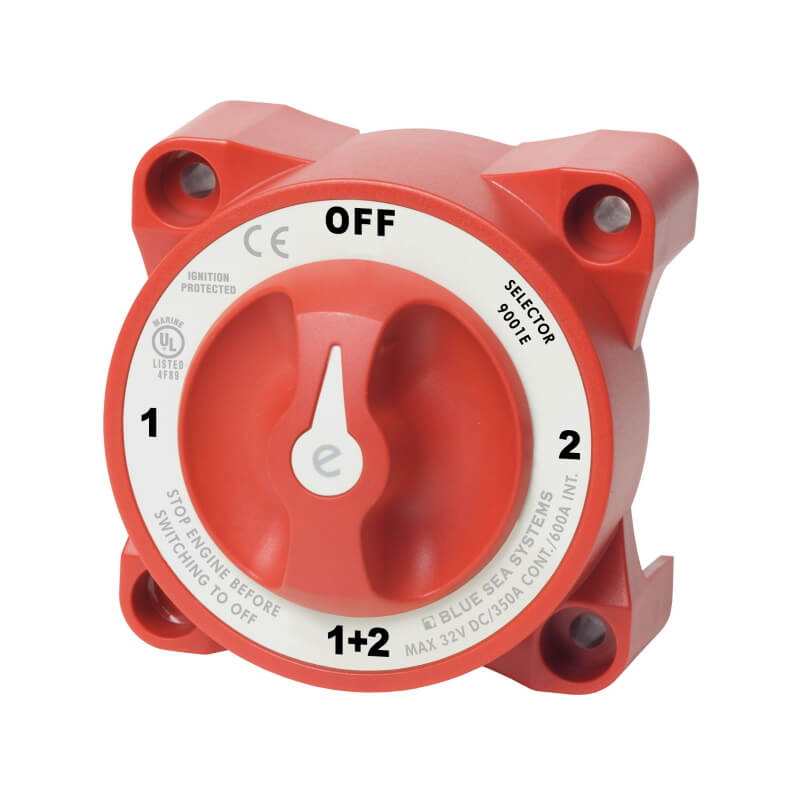

Blue Sea e-Series Battery Switch | 9001e

The Blue Sea e-Series Battery Switch is a high quality battery switch for vessels with dual battery installation, giving you the ability to not only switch between the two, but to also combine them. This battery switch is designed for two isolated batteries to two isolated loads, for example a start battery to starter motor and house battery to domestic circuits.

The Blue Sea e-Series Battery Switch features an innovative design that allows it to be either surface mounted or rear panel mounted. This battery switch is IP66 rated, meaning it is protected against powerful water jets, giving you peace of mind onboard.

Specifications

• 4 Position selector switch
• Tin-plated copper studs for maximum conductivity and corrosion-resistance
• Accepts up to 4/0 AWG (95mm²) battery cables
• Studs accept ⅜" (M10) ring terminals
• One-piece terminal stud design never loosens over time
• 1,200A - Cranking: 30 sec
• 600A - Intermittent: 5 min
• 350A - Continuous
• 32V DC - Maximum
• Can be surface mounted or mounted rear panel mounted
• UL listed (UL 1107 electric power switches)
• CE marked
• ISO 8846
• IP66 rated
• Meets American Boat and Yacht Council (ABYC) requirements
• Meets UL 1500 & SAE J1171 external ignition protection requirements
