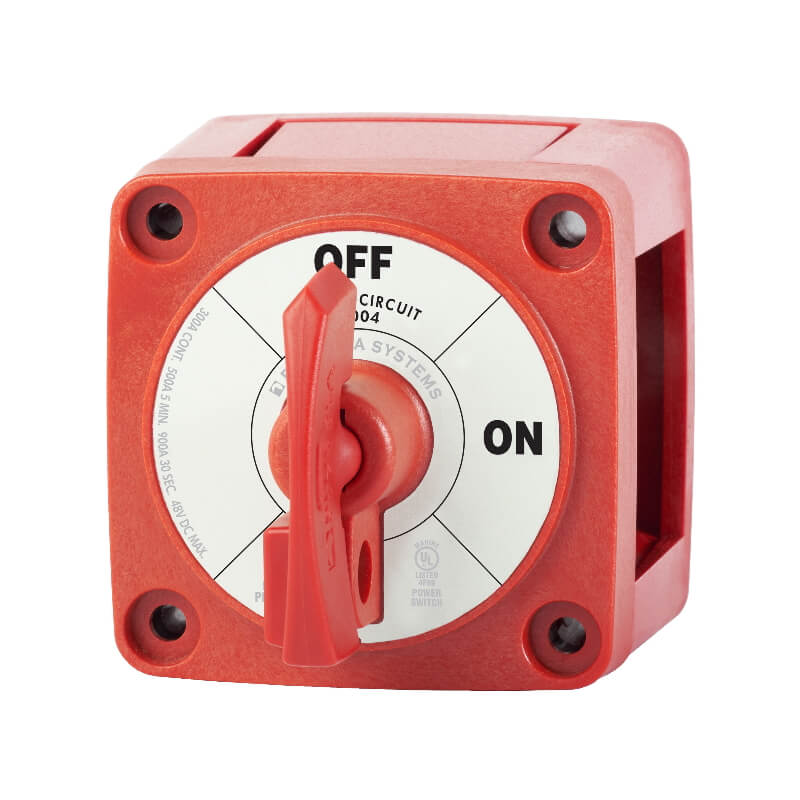

Blue Sea m-Series Battery Switch With Key | 6004

The Blue Sea m-Series Battery Switch features a locking key system, preventing you from accidentally turning the switch and stopping others switching the battery on. The innovative breakout tab design allows wire access in any direction, which when combined with the compact size ensures it is able to fit wherever you need it.

The Blue Sea m-Series Battery Switch is able to switch a single battery to a single load group. This battery switch has a 300 Amps continuous rating for outboards and small gasoline or diesel engines.

Specifications

• Single circuit ON/OFF switch with locking key.
• Tin-plated copper studs for maximum conductivity and corrosion resistance.
• Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction.
• Studs accept â…œ" (M10) ring terminals.
• One-piece terminal stud design never loosens over time.
• 900A - Cranking: 30 seconds
• 500A - Intermittent: 5 min
• 300A - Continuous
• 48DC - Maximum
• Can be surface mounted or rear / front panel mounted
• UL listed (UL 1107 electric power switch)
• ISO 8846
• IP66 rated
• Meets American Boat and Yacht Council (ABYC) requirements.
• Meets UL 1500 & SAE J1171 external ignition protection requirements.
