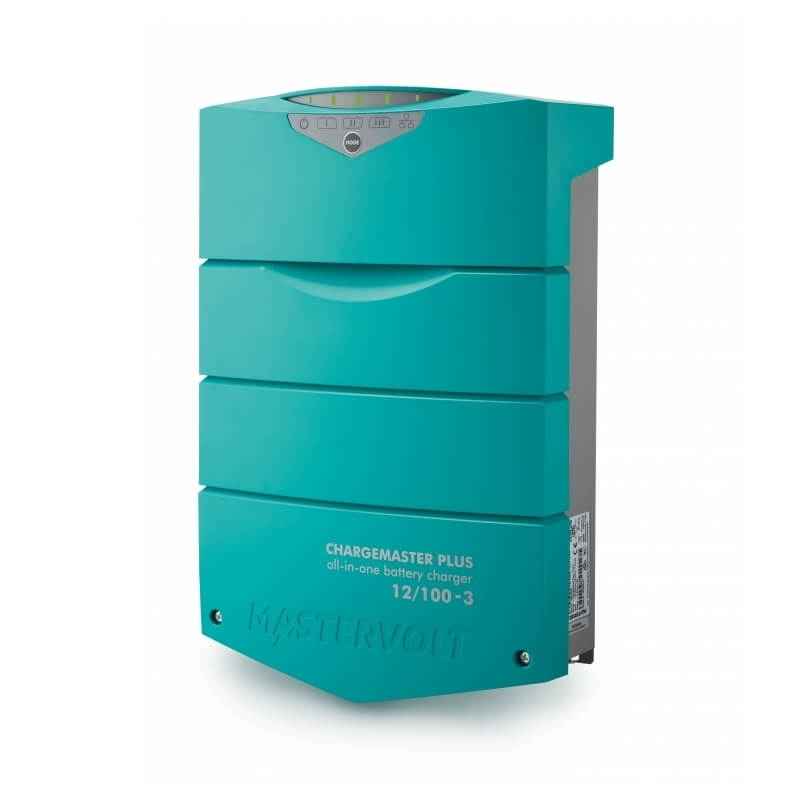

Mastervolt ChargeMaster Plus 12V 100A

The Mastervolt ChargeMaster Plus is a top of the range battery charger with an innovative design which integrated multiple functions into a single device. The ChargeMaster Plus is designed to replace auxiliary chargers, battery isolators and VSRs, combining them all into one to reduce system complexity and cost, with just a single item and price tag instead of several.

The versatile Mastervolt ChargeMaster Plus is able to quickly and efficiently charge almost any combination of two or three batteries, as it's capable of charging a wide range of sizes, voltages and chemistries. The ChargeMaster Plus is able to revive even fully depleted batteries and can even redirect available power to the lowest battery for faster charging.

Specifications

• Compact design
• Wide operating range (80-275V AC)
• Charges Lithium Ion, Gel and AGM batteries
• Charges multiple batteries while being underway
• Safe Charge
• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR
• Nominal output voltage: 12V
• Max output current (primary output): 100A
• Smart In-/Output output current: 12V
• Smart In-/Output input current: 5-40A (adjustable)
• Total charge current: 100A at 14.4V
• Max AC current (230V / 120V): 8.5A / 17A
• Number of battery outlets: 3
• Battery bank size: 400 - 1000Ah
• Nominal input voltage: 120/230V 50/60Hz
• AC connection: screw terminals, suitable up to 6mm^2
• Power supply mode: yes
• Galvanic isolation: yes
• Dimensions: 384 x 250 x 127mm
• Weight: 5.9kg
