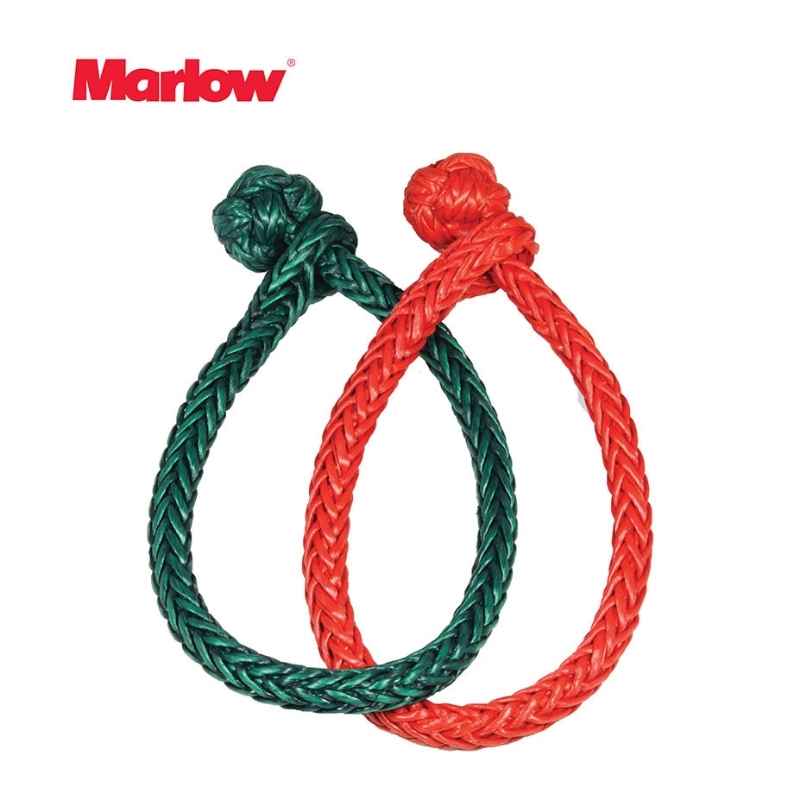

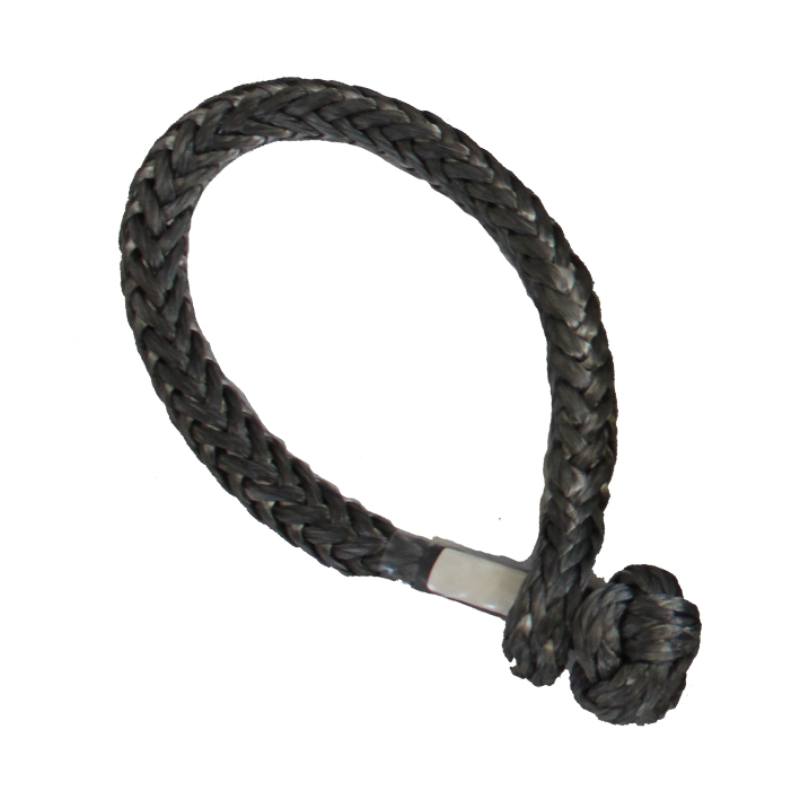

Marlow Soft Shackle - 3-6mm

Factory spliced D12 or HMPE Soft Shackles offer outstanding strength at a fraction of the weight of conventional steel shackles. With superior strength and incredible light weight, they can be used in any application in which you would normally use a steel shackle, providing a safe and stronger alternative.

Please note: The lengths listed in the specification are for both the closed circumference and open length. Closed length is approximately half the open length assuming the bearing surfaces are not too big. All these figures are approximate as they are hand made by artisans.

Features

• Does not rust or seize up
• Easy to install and remove
• Very high strength
• Very light weight
• Very low elongation

Specifications

Core: HMPE (High Modulus Polyethylene)

Diameter: 4mm

• Weight: 0.01kg
• Av Breakload: 2360kg
• Min Breakload: 1850kg
• Length: 0.2m

Diameter: 5mm

• Weight: 0.013kg
• Av Breakload: 2710kg
• Min Breakload: 2120kg
• Length: 0.25m

Diameter: 6mm

• Weight: 0.018kg
• Av Breakload: 4010kg
• Min Breakload: 3140kg
• Length: 0.3m

Diameter: 7mm

• Weight: 0.028kg
• Av Breakload: 6150kg
• Min Breakload: 4930kg
• Length: 0.35m
