Lofrans X1 Vertical Windlass

The Lofrans X1 Vertical Windlass features a vertical drive shaft for the gypsy, resulting in a compact deck unit with the motor and gearbox housed under the deck in the chain locker. The X1 Windlass has watertight stainless steel ball bearings in the base for better functionality and reduced maintenance, which is a unique feature in the windlass market.

The clutch of the Lofrans X1 Vertical Windlass is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.

Specifications

Available with drum or low profile
Independent Gypsy and drum operation
Rope & chain combination Gypsy
Rope chain management by the spring loaded arm
Manual chain release
IP67 rated heavy duty electric motor
Chain counter magnet pre-installed as standard
Anodised marine aluminium gearbox
Luxury chrome bronze base & drum
Recommended maintenance kit: 72037
3 Years limited manufacturer warranty

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain
Instruction manual

	Anodised Aluminium		Chromed Bronze
	500W	800W	500W	800W	1000W
Power Supply	12V	12V	12V	12V	12V
Maximum Pull	630kg	700kg	630kg	700kg	900kg
Working Load	95kg	100kg	95kg	100kg	125kg
Amps at Working Load	60A	110A	60A	110A	125A
Line Speed at Working Load	23 m/min	25 m/min	23 m/min	25 m/min	18 m/min
Max Line Speed	26 m/min	28 m/min	26 m/min	28 m/min	30 m/min
Net Weight (low profile)	10kg	13kg	11kg	13kg	16kg
Net Weight (with drum)	11kg	14kg	12kg	14kg	17kg

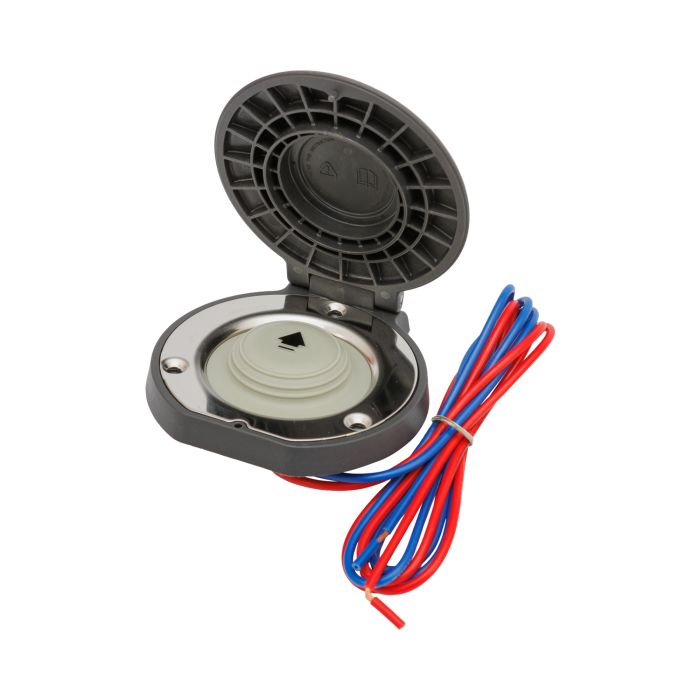

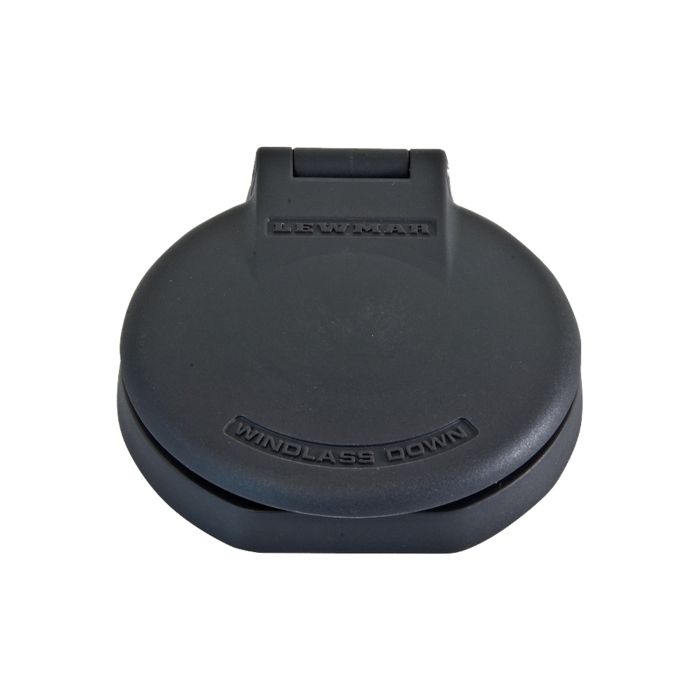

Lewmar Footswitch Assembly Grey
