SKU: DFWI1275

Lofrans Tigres Horizontal Windlass

£1,468.89
Tax included Shipping calculated at checkout.
Wattage
Voltage
Chain

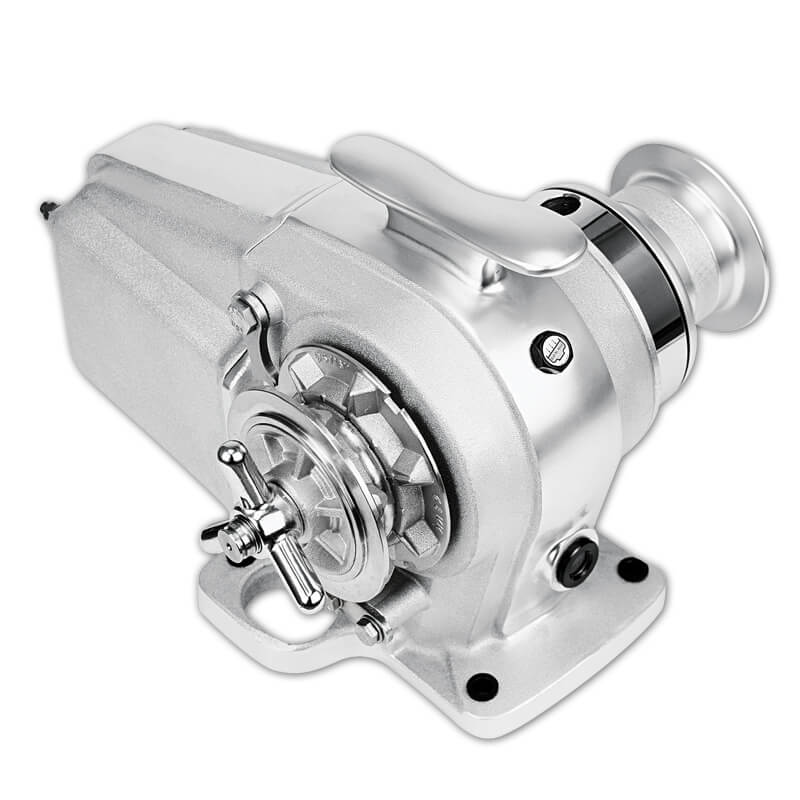

Lofrans Tigres Horizontal Windlass

The Lofrans Tigres Horizontal Windlass offers the best performance and functionality for when there is adequate deck space or if the chain locker has limited space or for accessibility. Lofrans are the creator of the first windlass, and the Tigres is designed to supply a high torque in all conditions.

The Lofrans Tigres Horizontal Windlass is made from is made from marine grade anodised aluminium alloy to ensure that it's strong, durable and aesthetically pleasing. To show their faith in their product, Lofrans have given the Tigres Windlass a 3 year limited warranty, which can be registered on their website.

Features

  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override
  • IP66 rated motor cover
  • Marine anodised aluminium body
  • Motor size: 1500W
  • 3 Years limited manufacturer warranty

Standard Equipment

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain
  • QR code for Instruction manual
Power Supply 12V 24V 48V
Maximum Pull 1500kg 1590kg 1000kg
Working Load 190kg 200kg 120kg
Amps at Working Load 160A 90A 33A
Line Speed at Working Load 14 m/min 16 m/min 20 m/min
Max Line Speed 33 m/min 33 m/min 20 m/min
Net Weight 28kg 28kg 28kg
