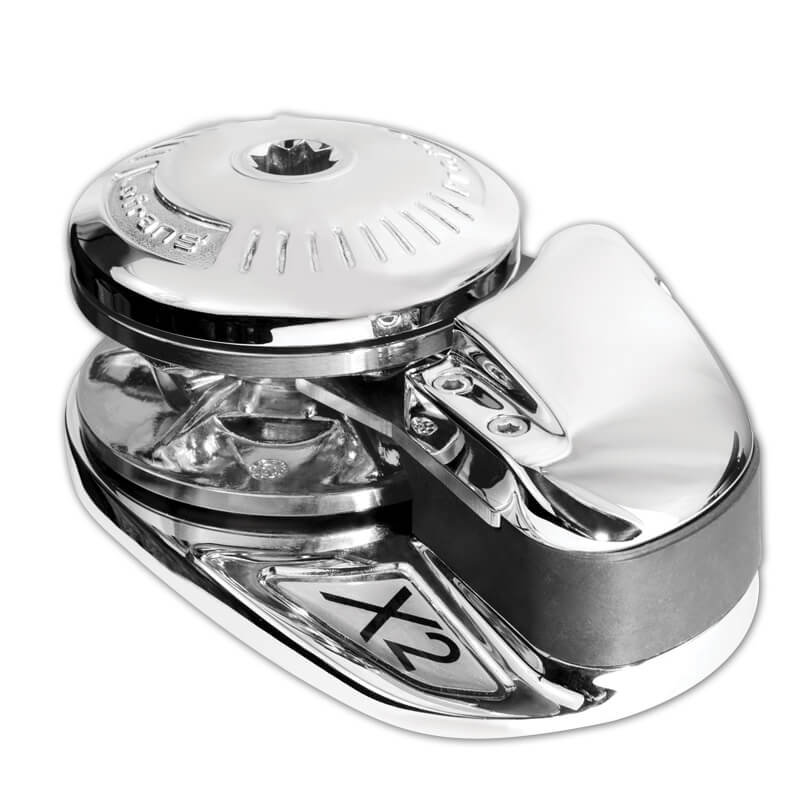

Lofrans X2 Vertical Windlass
Lofrans X2 Vertical Windlass - 12V - 1500W / Chrome / 10mm DIN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Lofrans X2 Vertical Windlass
The Lofrans X2 Vertical Windlass is designed to provide the ultimate anchoring solution for sail and motor boats between 6m to 27m in length. The X2 Vertical Windlass has a a vertical rotation in relation to the deck, allowing for a reduced volume above deck as the electric motor and the gear box are sitting in the chain locker.
Every part of the Lofrans X2 Vertical Windlass has been carefully designed and manufactured to ensure the highest of quality that will last for years to come such as the clutch which is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly. The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance. To show their belief in the product, Lofrans have given this windlass a 3 year limited manufacturer warranty.
Features
- Available with drum or low profile.
- Independent Gypsy and drum operation.
- Rope & chain combination gypsy.
- Rope chain management by the spring loaded arm.
- Manual chain release.
- IP67 rated heavy duty electric motor.
- Chain counter magnet pre-installed as standard.
- Anodised marine aluminium gearbox.
- 3 Years limited manufacturer warranty.
Standard Equipment
- Dual direction solenoid pack.
- Handle.
- Gypsy for chain & rope.
- QR code for instruction manual.
Frequently Asked Questions
What are the specifications of the Lofrans X2 Anodised Aluminium Windlass?
800W | 1000W | 1500W | |||
---|---|---|---|---|---|
Power Supply | 12V | 12V | 24V | 12V | 24V |
Maximum Pull | 850kg | 1000kg | 1060kg | 1200kg | 1270kg |
Working Load | 115kg | 150kg | 160kg | 165kg | 175kg |
Amps at Working Load | 110A | 117A | 59A | 130A | 65A |
Line Speed at Working Load | 30 m/min | 20 m/min | 23 m/min | 17 m/min | 19 m/min |
Max Line Speed | 35 m/min | 40 m/min | 40 m/min | 40 m/min | 40 m/min |
Net Weight (low profile) | 18kg | 19kg | 23kg | 24kg | 24kg |
Net Weight (with drum) | 19kg | 20kg | 24kg | 25kg | 25kg |
What are the specifications of the Lofrans X2 Chrome Plated Windlass?
800W | 1000W | 1500W | |||
---|---|---|---|---|---|
Power Supply | 12V | 12V | 24V | 12V | 24V |
Maximum Pull | 850kg | 1000kg | 1060kg | 1200kg | 1270kg |
Working Load | 115kg | 150kg | 160kg | 165kg | 175kg |
Amps at Working Load | 110A | 117A | 59A | 130A | 65A |
Line Speed at Working Load | 30 m/min | 20 m/min | 23 m/min | 17 m/min | 19 m/min |
Max Line Speed | 35 m/min | 40 m/min | 40 m/min | 40 m/min | 40 m/min |
Net Weight (low profile) | 21kg | 23kg | 23kg | 24kg | 24kg |
Net Weight (with drum) | 23kg | 24kg | 24kg | 25kg | 25kg |
