Blue Sea Systems Fuse Block Safety Midi
£56.96
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Blue Sea Systems Fuse Block Safety Midi is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

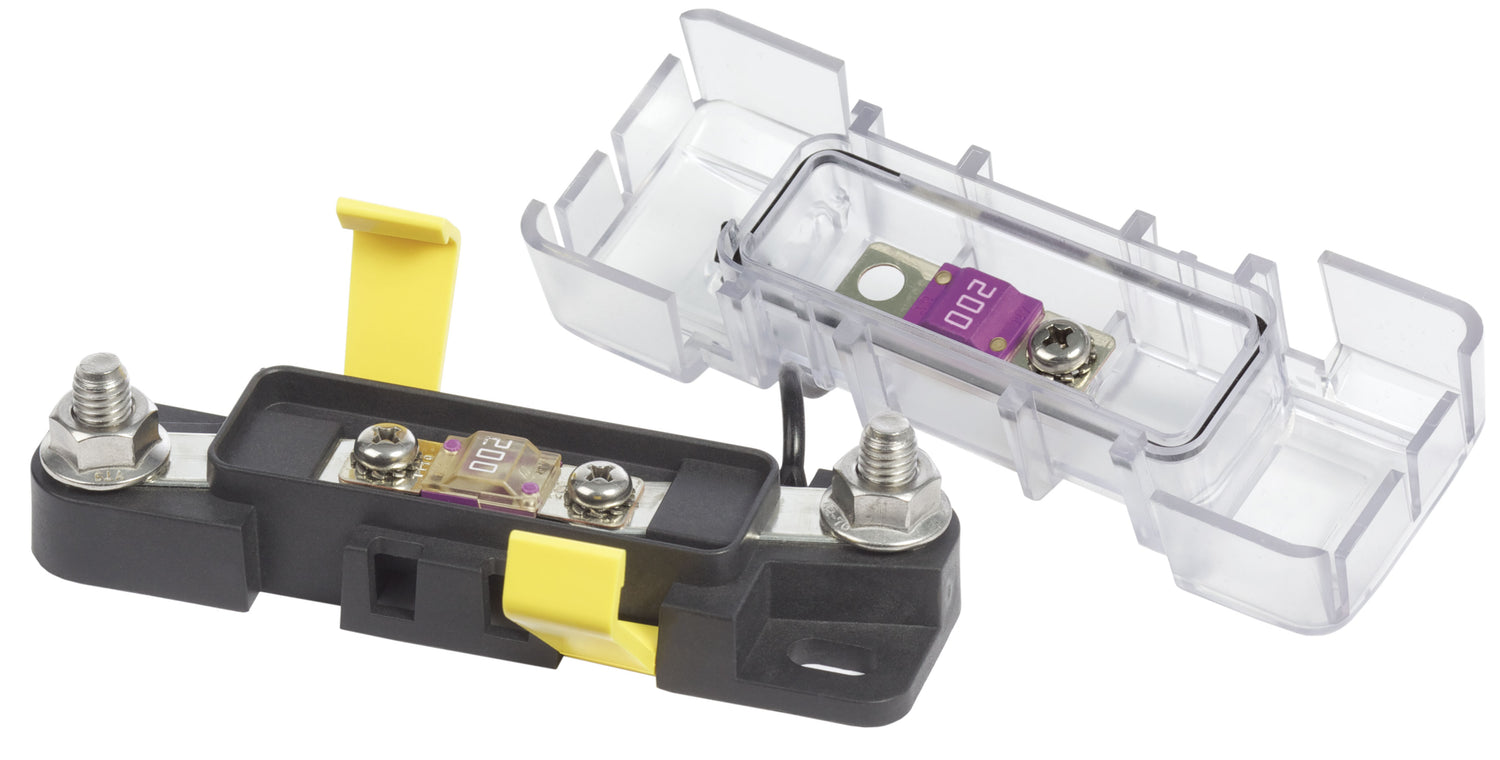

Blue Sea Systems Fuse Block Safety Midi | BSS7720
- Ignition protected for installation aboard gasoline or diesel powered boats
- Sealed cover protects fuses from the harsh marine environment
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- 200A maximum with 4/0 cable
- Accepts Blue Sea Systems Square Format standard or custom label
- Fuses sold separately
Specifications
| Maximum Amperage | 200A |
| Maximum Voltage | 32V DC |
| Stud Size | M8 x 1.25 |
| Fuse Screw | M5 x 0.8 |
| Recommended Screw Torque | 27 in-lb (3.05 N·m) |
| Recommended Stud Torque | 120 in-lb (13.56 N·m) |
| Ring Terminal Size | M8 (5/16") |
| Weight | 0.15lb (0.07 kg) |
