ProMariner Pronautic 1230p Battery Charger (12V 30A 3 out)

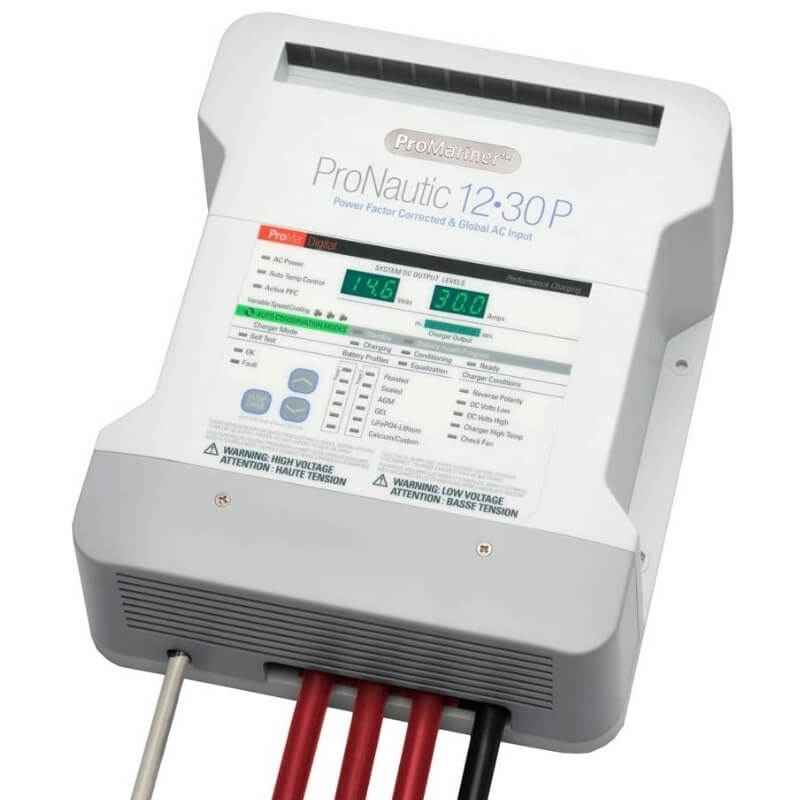

ProMariner ProNautic 1230P Battery Charger | 63130
The ProMariner ProNautic 1230P Battery Charger is an industry award winning charger that uses the Generation 3 ProMar Digital Performance Charging Platform, which combines all digital control and software based power conversion technology. This battery charger was designed to resolve the issue of more and more 12 volt electronics being used onboard.
The ProNautic 1230P features up to 12 performance & precision charging profiles: Charge; Condition; Auto Maintain; Recondition. This battery charger is able to extend battery life and maximize battery reserve power performance, saving you money in the long run.
Specifications
- Output: 12V 30A
- 12 Volt DC System
- 12 Selectable profiles
- Power factor correction - Global AC output
- Conservation energy saver mode
- Digital self-calculating absorption & battery health reconditioning mode
- Distributes on Demand technology
- Service & fault mode indicators
- Automatic fan speed control
- Automatic temperature compensation
- Built-in safety
- 5 Years manufacturer warranty
Frequently Asked Questions
What does the "Conservation Energy Saver" mode mean?
The Conservation Energy Mode means that after batteries are full and conditioned, the ProMariner ProNautic 1230P will monitor and automatically maintain batteries when needed, maintaining a full state of charge and significantly reducing AC power consumption and thus limiting operating costs.
Can the ProMariner ProNautic 1230P Battery Charger detect faults?
This battery charger has real time indicators to display wiring faults or other adverse conditions that may impact the operation of the boat's charging system.
What do I need to install the ProMariner ProNautic 1230P Battery Charger?
The typical installation materials required are:
- Properly rated marine grade wire for AC input
- Properly rated marine grade wire for the DC output rating of your charger and wire length
- Package of tie wraps
- Package of strain relief's (use on all cables every 18 inches)
- Marine grade DC ring terminals
- Up to 6 (#8) marine grade AC ring terminals
- Up to 3 marine grade DC breakers or marine grade AUE fuses & holders
- 4 Stainless steel self rapping screws for mounting the charger
If desired, spiral wrap or split loom to cover and protect all wiring. Heat shrink to seal all terminal connections.
If you need installation assistance, contact your local ABYC Certified Marine Electrical Technician to install your charger.
