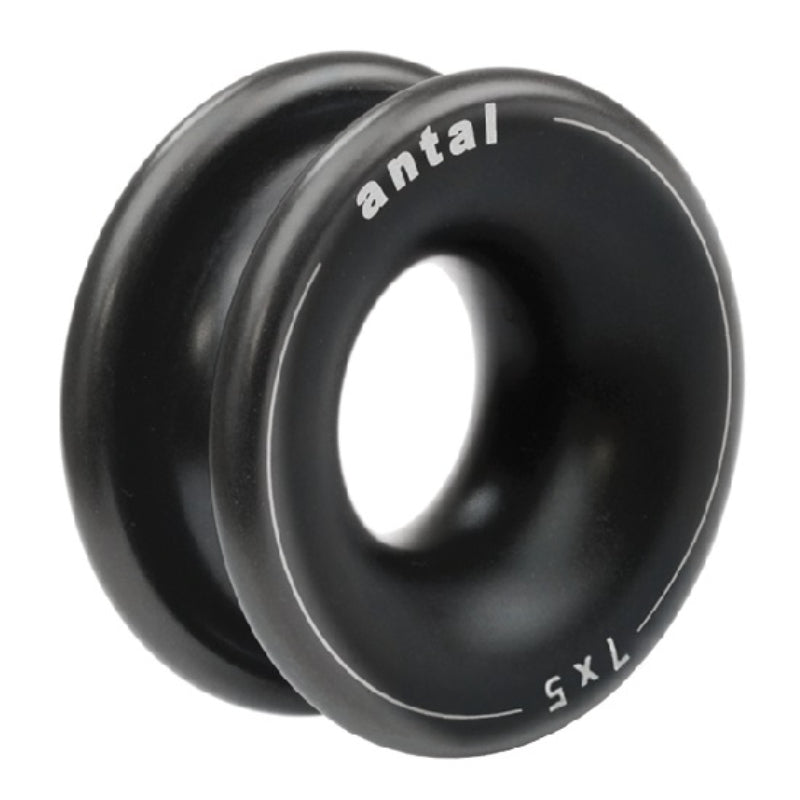

Antal Low Friction Ring

Antal low friction rings are leading the way in soft link technology. Simple, light and resistant "rings" together with the most advanced products, such as the solid rings and hooks, have revolutionized the way to configure many current and fixed manoeuvres on boats, and not only on boats. Thanks to the perfectly polished finish, Soft links minimize friction, and thanks to their simplicity they cut costs and require very little maintenance.

They are the universal solution with great versatility, as they can be used as a barber, as a lazy jack or a backstay instead of a pulley. Or for hoists up to 8:1, for example in a cascade system, as a clew point and as a block.

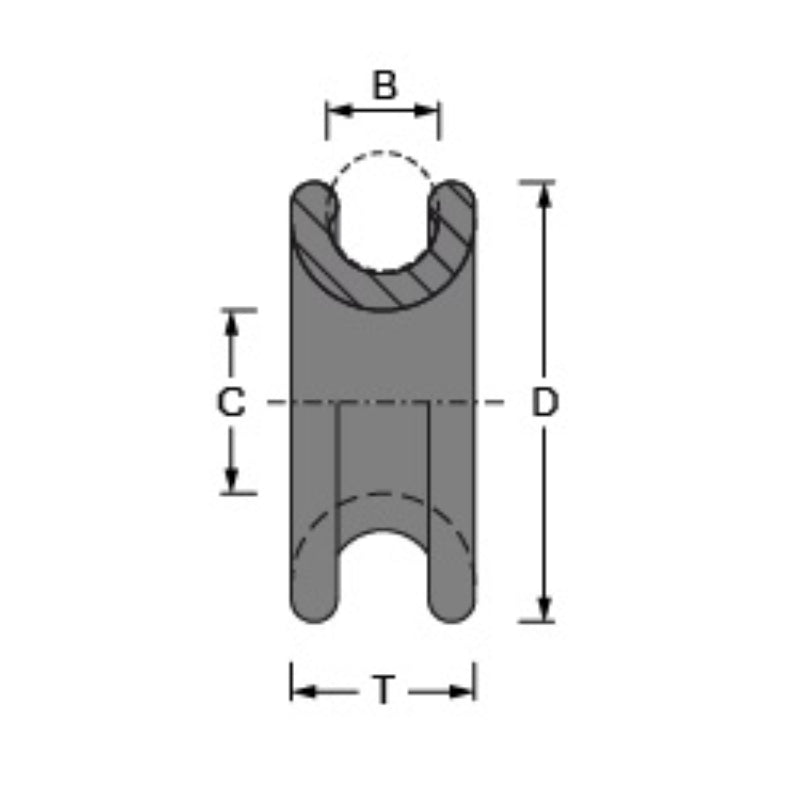

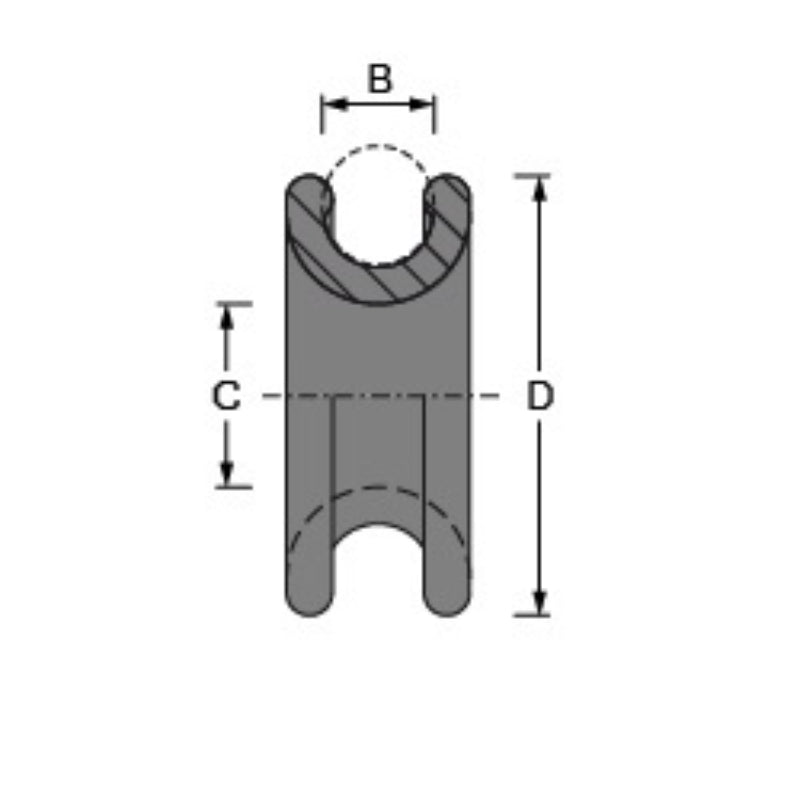

Specifications 7mm

• Weight (g) - 3 g
• B(mm) - 5 mm
• C(mm) - 7 mm
• D (mm) - 18 mm
• Safeworking load (kg) - 400 kg
• Material - Aluminium

Specifications 10mm

• Weight (g) - 5 g
• B(mm) - 7 mm
• C(mm) - 10 mm
• D (mm) - 25 mm

• T (mm) - 12 mm
• Safeworking load (kg) - 800 kg
• Material - Aluminium

Specifications 14mm

• Weight (g) - 12 g

• B (mm) - 10 mm

• C (mm) - 14 mm

• D (mm) - 35 mm

• T (mm) - 15 mm

• Safeworking load (kg) - 1600 kg

• Material - Aluminium

Specifications 20mm

• Weight (g) - 44 g
• B (mm) - 14 mm
• C (mm) - 20 mm
• D (mm) - 50 mm
  T (mm) - 22 mm
• Safeworking load (kg) - 3200 kg
• Material - Aluminium

Specifications 28mm

• Weight (g) - 120 g

• B (mm) - 20 mm

• C (mm) - 28 mm

• D (mm) - 70 mm
• T (mm) - 31 mm

• Safeworking load (kg) - 6400 kg

• Material - Aluminium
