Barton High Load Low Friction Eye

The Barton High Load Eye is a lightweight, low-friction alternative to a conventional block for selected marine rigging applications.

Manufactured from marine-grade aluminium with an HV500 hard-anodised finish, each eye features carefully curved surfaces designed to reduce friction and improve wear resistance. The range provides an excellent strength-to-weight ratio without moving parts or bearings to maintain.

Available in six bore sizes for applications including lazy jacks, kickers, tweakers, barber haulers, mast-base tidies and stanchion lead eyes.

Key Features

• Lightweight marine-grade aluminium construction
• Hard-anodised HV500 finish
• Smooth profile designed to minimise friction
• Excellent strength-to-weight ratio
• No moving parts or bearings to maintain
• Six sizes available
• Suitable for a wide variety of running-rigging applications
• Manufactured by Barton Marine

Typical Applications

• Lazy jacks
• Kicker and vang systems
• Genoa and spinnaker barber haulers
• Tweakers
• Mast-base line organisers
• Stanchion lead eyes
• Backstay cascades
• Line deflection and redirection systems

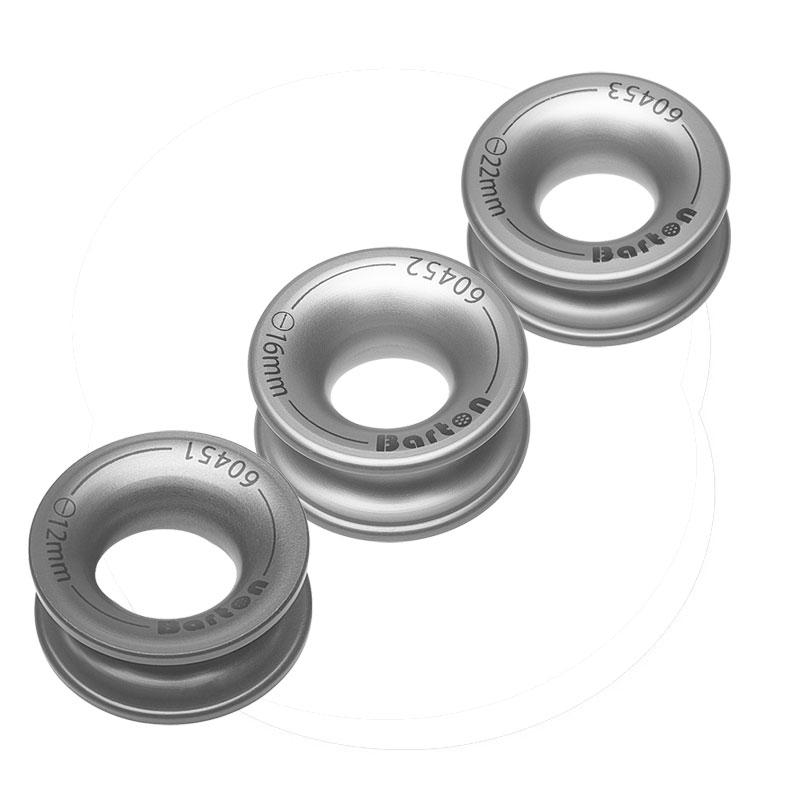

Size Guide

6mm bore – Barton 60449
External diameter: 12mm
Maximum attachment rope diameter: 3mm
Safe working load: 300kg

9mm bore – Barton 60450
External diameter: 18mm
Maximum attachment rope diameter: 4mm
Safe working load: 550kg

12mm bore – Barton 60451
External diameter: 26mm
Maximum attachment rope diameter: 6mm
Safe working load: 800kg

16mm bore – Barton 60452
External diameter: 38mm
Maximum attachment rope diameter: 10mm
Safe working load: 1,800kg

22mm bore – Barton 60453
External diameter: 52mm
Maximum attachment rope diameter: 12mm
Safe working load: 3,300kg

28mm bore – Barton 60454
External diameter: 65mm
Maximum attachment rope diameter: 16mm
Safe working load: 4,500kg

Selecting a Size

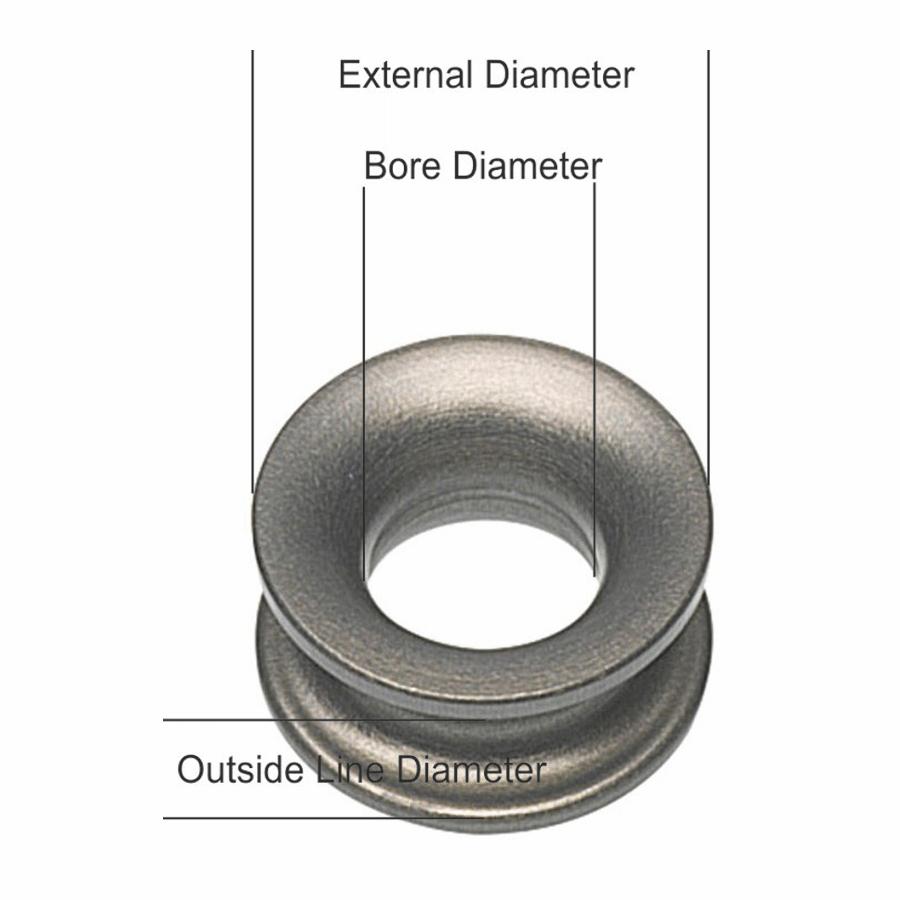

The stated bore size is the diameter of the central opening through which the working line passes. The attachment-rope measurement refers to the maximum diameter used around the outside groove of the eye.

Select a size suitable for the line diameter, expected load, attachment arrangement and intended application.

Important Information

Each Barton High Load Eye is supplied individually and without an attachment strop or loop unless otherwise stated.

Safe working loads depend on correct installation and loading. Inspect the eye and all associated lines regularly for wear or damage. If you are uncertain about product selection or installation, consult a qualified marine-rigging professional.
