SKU: RIBL1022

Barton Marine Double Block with Swivel and Becket

£32.69
Tax included Shipping calculated at checkout.
Size

Pickup available at YouBoat Gosport

Usually ready in 24 hours

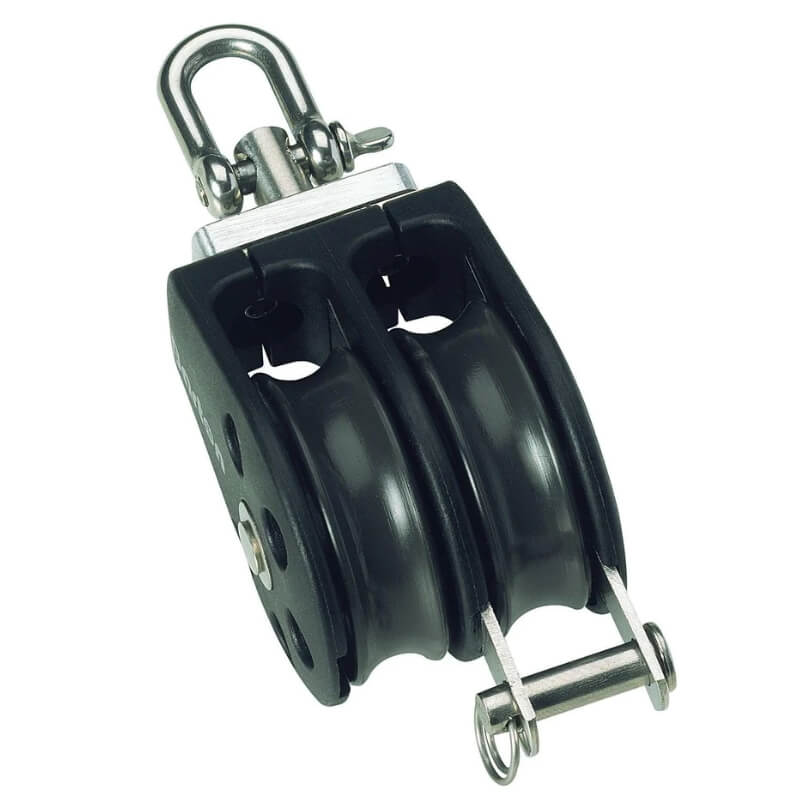

Barton Marine Double Block with Swivel and Becket

The Barton Marine Double Block with Swivel and Becket is a strong, lightweight plain-bearing block designed for dependable line handling on dinghies, dayboats and cruising yachts.

The fully swivelling head allows the block to align naturally with the direction of the load, while the integrated becket provides an attachment point for the standing end of the rope. Precision-moulded Acetal sheaves run on large-diameter brass bearings for smooth and reliable operation under load.

Available in five Barton sizes for mainsheet systems, kicking straps, control lines and general-purpose rope tackles.

Key Features

• Double plain-bearing sheaves
• Fully swivelling attachment head
• Integrated becket
• Precision-moulded Acetal sheaves
• Large-diameter brass centre bearings
• Strong internal stainless-steel frame
• Lightweight and corrosion resistant
• Suitable for mainsheets, vangs and purchase systems

Specifications

Barton Size Product Code Sheave Size Maximum Rope Diameter Safe Working Load Break Load Dimensions Weight
Size 0 – 20 mm BAN00231 20 × 8 mm 6 mm 275 kg 550 kg 80 × 30 × 21 mm 50 g
Size 1 – 30 mm BAN01231 30 × 12 mm 8 mm 355 kg 710 kg 93 × 40 × 32 mm 88 g
Size 2 – 35 mm BAN02231 35 × 11 mm 8 mm 370 kg 740 kg 100 × 39 × 38 mm 99 g
Size 3 – 45 mm BAN03231 45 × 13 mm 10 mm 400 kg 800 kg 118 × 46 × 47 mm 143 g
Size 5 – 54 mm BAN05231 54 × 17 mm 12 mm 750 kg 1,500 kg 155 × 59 × 58 mm 312 g



Brand: Barton Marine
Block Type: Double block with swivel and becket
Bearing Type: Plain bearing
Number of Sheaves: Two
Sheave Material: Acetal
Internal Frame: Stainless steel
