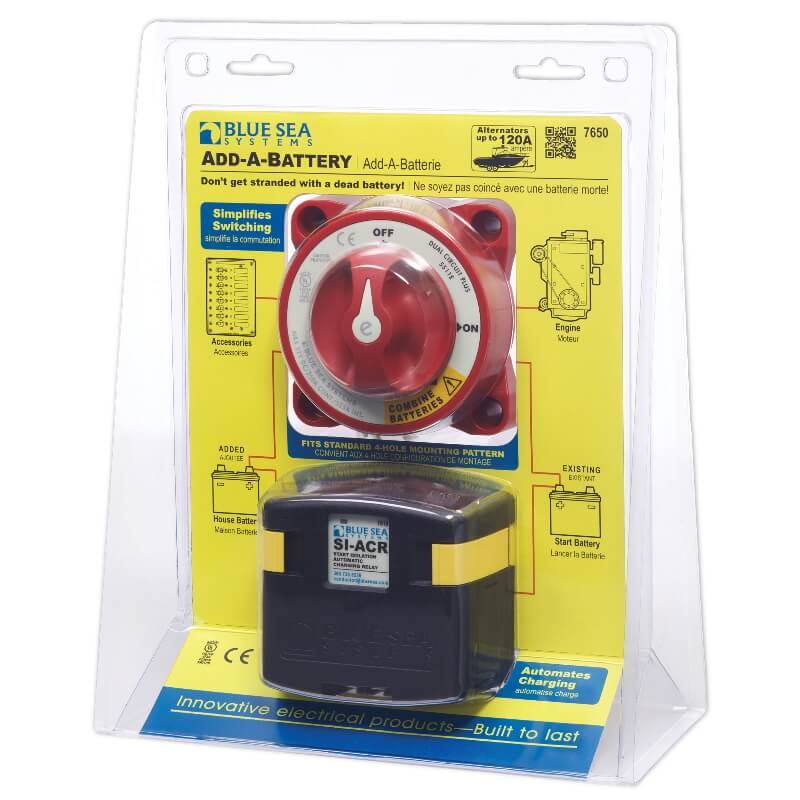

Blue Sea Add-A-Battery Kit - 120A
Blue Sea Add-A-Battery Kit - 120A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Blue Sea Add-A-Battery Kit - 120A
Blue Sea Add-A-Battery Kit - 120A | 7650
The Blue Sea Add-A-Battery Kit features two innovative products, the Dual Circuit Plus and the SI-ACR, which allow you the use of two batteries to help prevent you getting stranded with a dead battery. The Blue Sea SI-ACR automatically combines battery banks when charging and isolates them when discharging.
The Blue Sea Dual Circuit Plus is an E Series battery switch that simultaneously switches two battery banks while also maintaining battery bank isolation. The Dual Circuit Plus can combine two battery banks in the event of a low start battery to help you get going.
Kit Contains
- Dual Circuit Plus (E Series battery switch)
- SI-ACR (Automatic charging relay with optional start isolation)
Frequently Asked Questions
What is the specification of the Blue Sea Dual Circuit Plus?
- Switches two battery banks simultaneously
- Maintains battery bank isolation
- Combines two battery banks in event of low start battery
- 700A cranking (30 sec.)
- 525A intermittent (5 min.)
- 350A continuous
- 32V DC maximum
- 4/0 AWG (120mm²) cable
- CE marked
- ISO 8446 compliant
- IP66 rating
What is the specification of the Blue Sea SI-ACR?
- Automatically combines battery banks when charging and isolates when discharging.
- Start isolation option protects electronics from voltage sags and spikes during engine cranking.
- Dual sensing senses charge on two battery banks.
- 210A intermittent (5 min.)
- 12A continuous
- 12V or 24V DC nominal
- 1/0 AWG (50mm²) cable
- CE marked
- IP67 rating
