SKU: NAVH1013

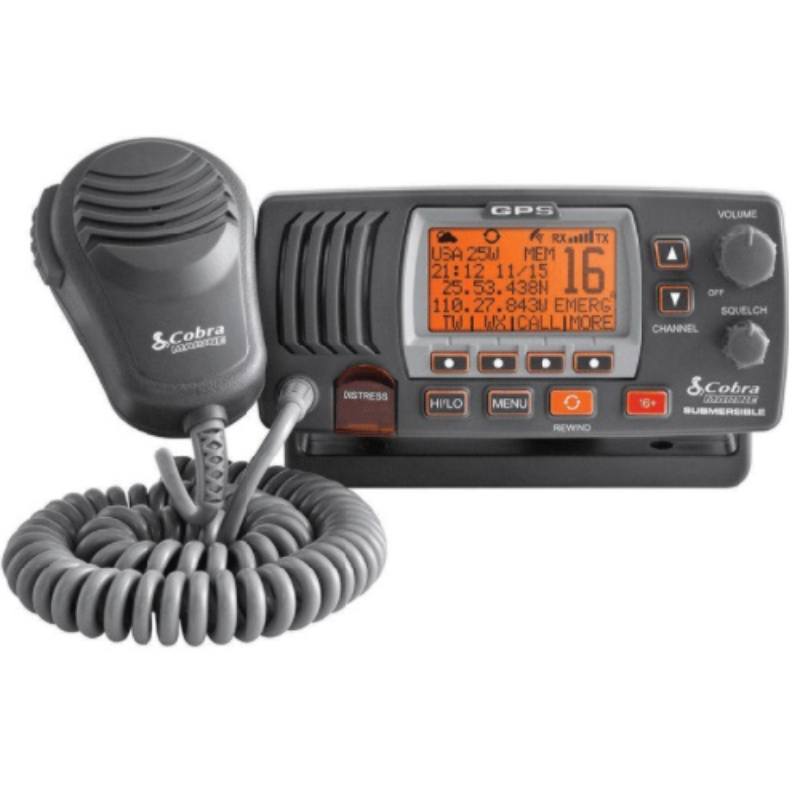

Cobra F77B Class-D Fixed Mount VHF Radio

£207.99
Tax included Shipping calculated at checkout.

Cobra F77B Class-D Fixed Mount VHF Radio | MR F77B GPS E

The Cobra F77B Fixed Mount VHF Radio is the ultimate feature packed marine radio with GPS. This radio is compliant with the latest specifications for class-D VHF radios and allows digital selective calling, which sends a distress signal or your position information at the touch of a button to other boats or stations. The Cobra F77B Radio allows you to monitor two channels at once, channel 16 and one channel of your choice.

The Cobra F77B VHF Radio makes your life easier, with the build in rewind-say-again feature which allows you to record and replay the last 20 seconds of a VHF call, making sure you never miss important information again. This VHF radio features a large illuminated LCD display and illuminated keys to ensure visibility at all times. Simply connect the 12V (red and black) wires and enter their MMSI for full setup and immediate operation.

Specifications

  • Dimensions: 159 x 57 x 180mm
  • Weight: 1100g
  • Input voltage: 138 VDC
  • Built-in GPS receiver
  • Class-D DSC
  • Rewind-Say-Again
  • Softkey operation
  • PA output
  • Noise cancelling microphone
  • Radio check
  • Submersible (JIS8 / IPX8)
  • 1W or 25W for short & long range communication
  • In-dash flush mount kit included
  • Over/under console C bracket included
  • Locking microphone hanger included



Frequently Asked Questions

What are the specifications of the GPS on the F77B?

  • Receiver: 56 channels
  • Hot nominal: <1 second, limit: +/- 5 seconds
  • Warm nominal: <33 seconds, limit: +/- 5 seconds
  • Cold nominal: <33 seconds, limit: +/- 5 seconds
  • Update rate: up to 5Hz
  • Antenna type: internal patch antenna
  • GPS receiver first lock sensitivity nominal: -144dBm, limit: 142dBm
  • GPS receiver tracking sensitivity nominal: -160dBm, limit: 155dBm
  • Differential system compatibility: EGNOS (Europe), WAAS (United States), MSAS (Japan) & GAGAN (India)
