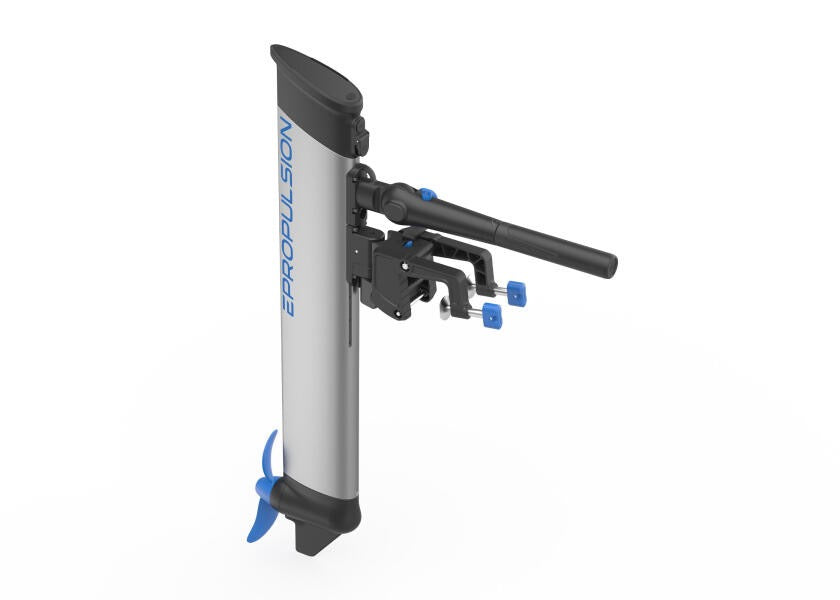

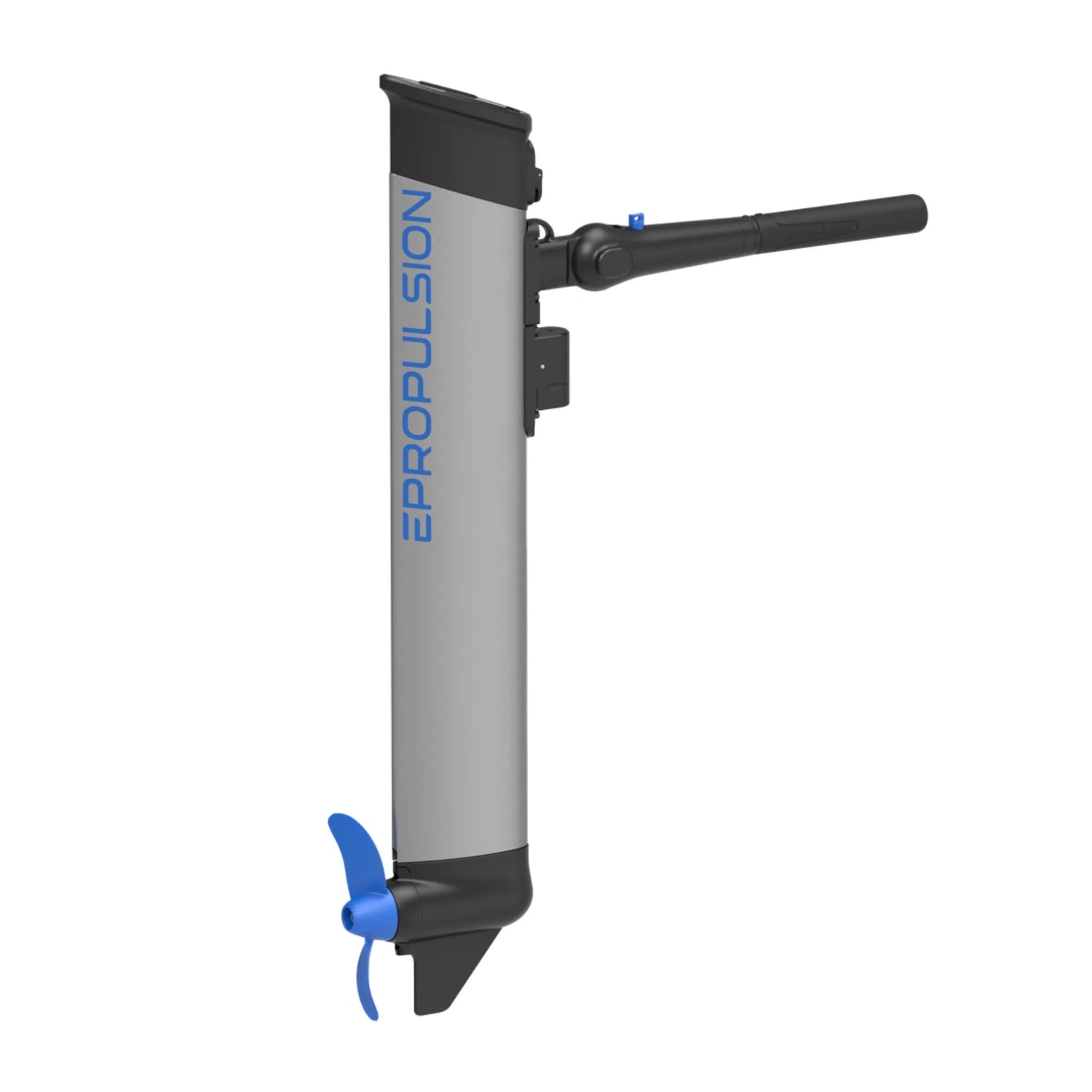

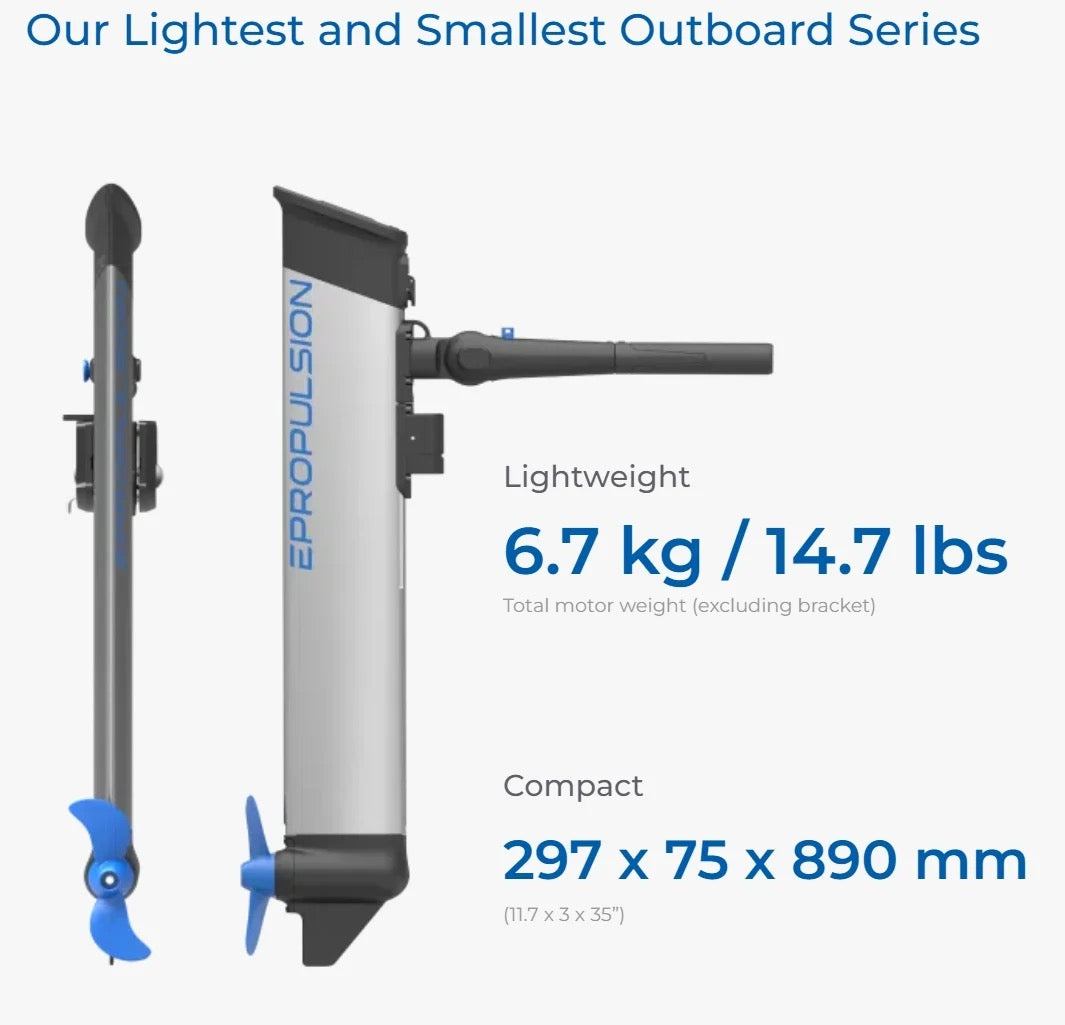

ePropulsion eLite 500W Electric Outboard

This motor is typical of the ePropulsion range in that it is best in class and very very easy to use.  It is perfect for short ranges and where there is no strong tide or current.

Key benefits

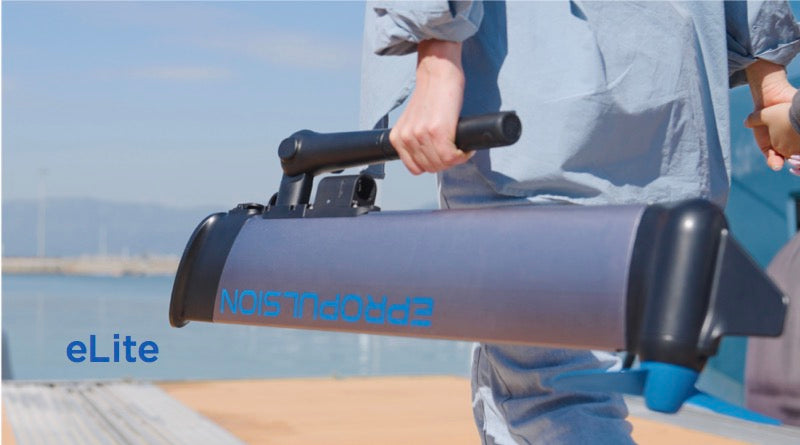

• This engine is ultra light at 7kg
• It is very easy to use
• Comes with a bag
• Looks amazing

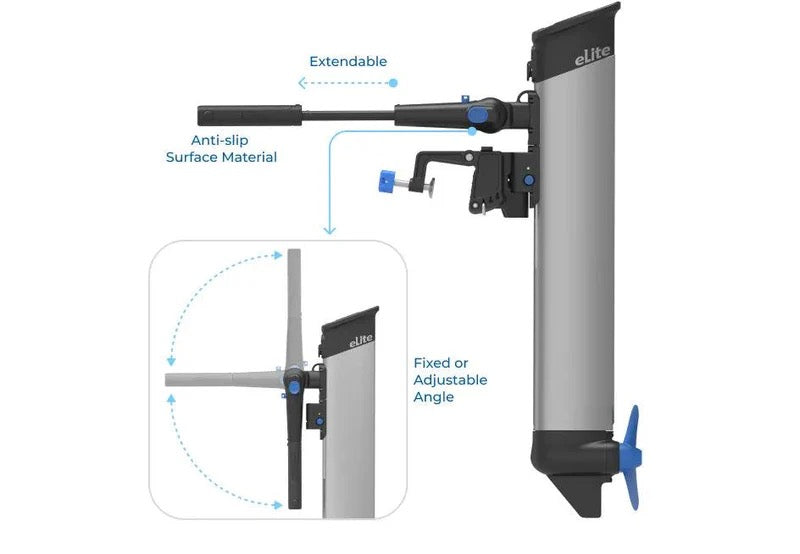

• Adjustable tiller length
• USB type c port for charging other devices
• Forward and reverse on a direct drive ie no gear box

In summery this is a brilliant easy to use light short range electric engine that will last many years.

Technical Specification

• Nominal Power 500 W
• Maximum Power (in Sport mode)750 W
• BatteryIntegrated 378 Wh
• 25.2V Lithium-ionCharger220V AC charger included,
• 12V charger optional
• Rated RPM1500 to 1700
• Operating Temperature-5 to 55 ° Temperature-20 to 45C °
• Trim and Tilt 8° / 17° / 26°

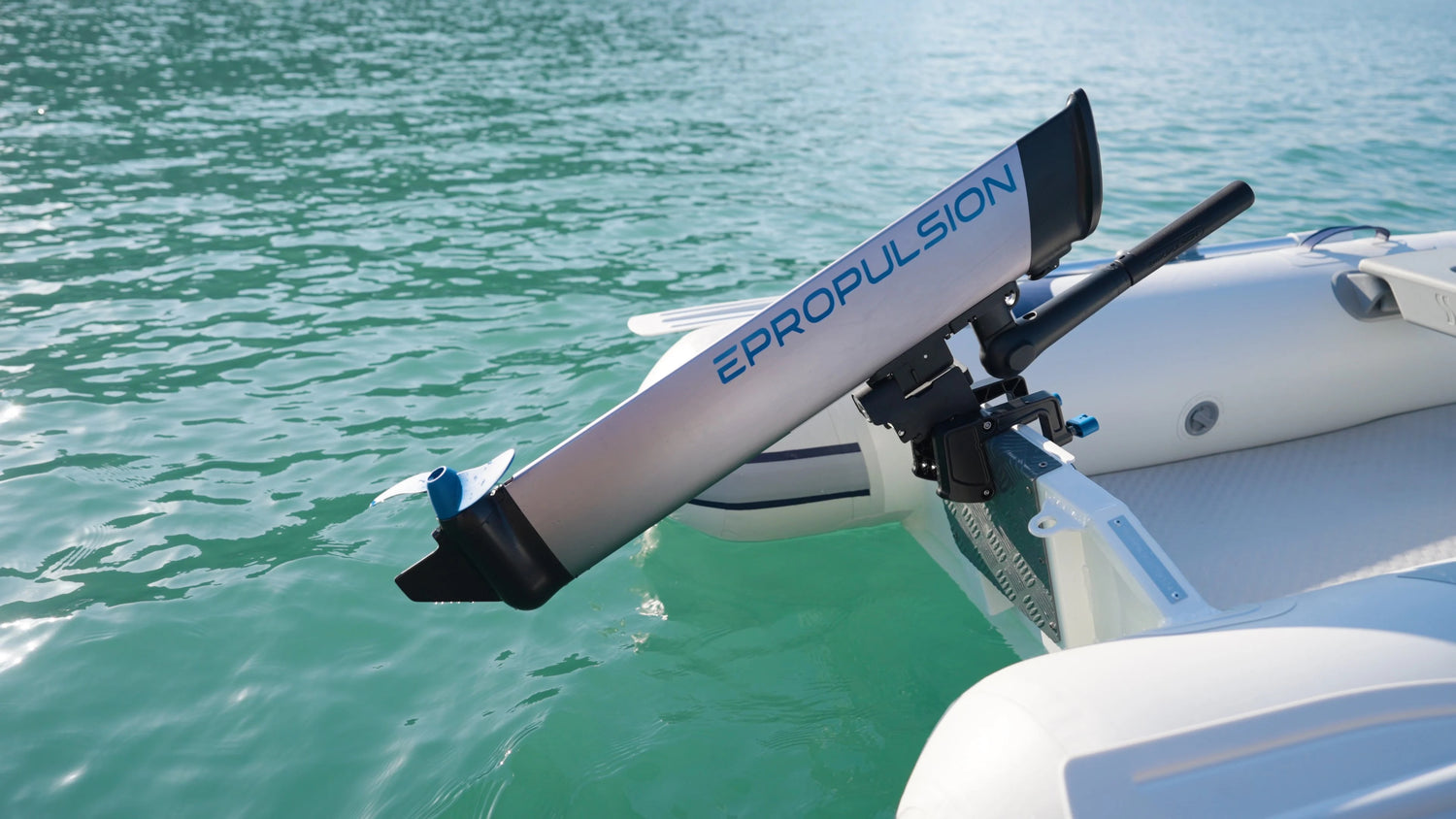

• Tilt Angle 75°
• Shallow Water Mode Tilt Angle36°
• Steering Angle±70°
• Dimensions (L x W x H)297 x 75 x 890 mm (11.7 x 3 x 35”)
• Motor Weight (excluding bracket)6.5 kg /
• Adjustable Shaft Length 40.1 / 36.25 / 32.2 / 28.25 cm (15.8 / 14.27 / 12.7 / 11.1”)

Notes

It is strongly recommended that the propellor is at least 100mm under  the water to obtain the efficiency.
