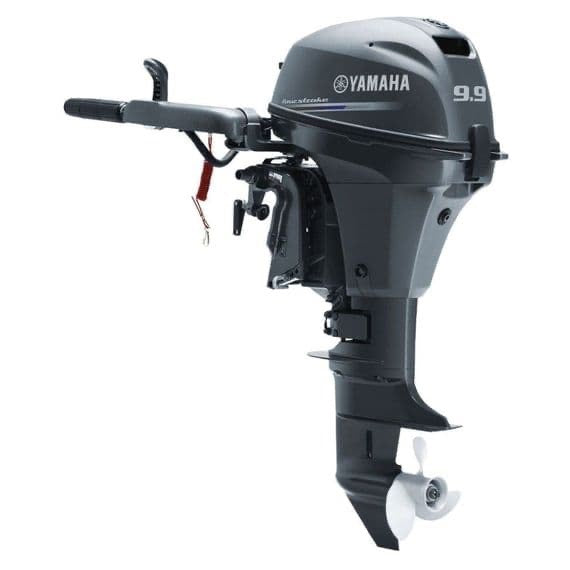

Yamaha 9.9hp 4 Stroke Outboard external tank

Yamaha F9.9JMHS

Tiller Control | Manual Start | Manual Tilt | 40kg

Packing more power on the water doesn't have to mean dragging a heavy outboard onto your boat because the lightweight F8 and F9.9 are perfectly portable. Their comfortable-to-use, integrated carrying handles help too. Discover the joys of whisper-quiet operation and excellent fuel economy, now blended with even more of our smooth, reliable power.

Yamaha's CDI Ignition System ensures reliable, first-time start-up, so with the twist-grip throttle and F-N-R gear system, it all adds up to easy, safe handling. These are engines with many talents, making them ideal for tender duties, for short fishing or family expeditions – or if you use your boat as a reliable work partner.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 212 cm³
• No. of cylinders/configuration: 2/In-line, SOHC
• Bore x stroke: 56.0 mm x 43.0 mm
• Prop shaft output at mid range: 7.3kW / 5,500 rpm
• Full throttle operating range: 5,000 - 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: 1-Carb
• Ignition / advance system: CDI
• Starter system: Manual (MH)
• Gear ratio: 2.08 (27/13)

Dimensions:

• Recommended boat transom height: S 431 mm
• Weight with propeller: F9.9JMHS: 40.0 kg
• Fuel tank capacity: Separate fuel tank 12 litres
• Oil pan capacity: 0.8 litres

Features:

• Control: Tiller handle
• Start Method: Manual Pull
• Trim and tilt method: Manual
• Lighting Coil Alternator: Included / (Optional 12v - 6A Output with rectifier/regulator)
• Propeller: Included
• Shallow Water Drive: Standard
